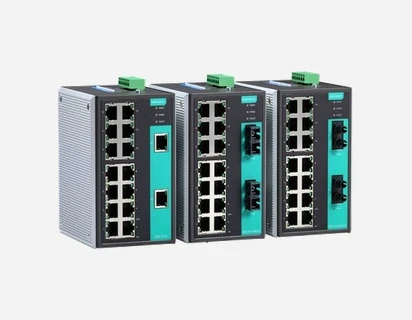

EDS-316 Series
16-port unmanaged Ethernet switches
Features
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C wide operating temperature range (-T models)
- 16-port unmanaged Ethernet switches
- Built-in relay warning function for power failures and port breaks
- Designed for harsh industrial environments
- Complies with Class I Div. 2 and ATEX Zone 2 standards
- Complies with FCC, UL, and CE standards
- 100% burn-in test for all switches
- Easy DIN rail or distribution box installation
- Auto MDI/MDI-X connection
- Full/Half duplex mode support
- Auto negotiation speed
- Store and Forward processing
- Reverse polarity protection
- Overload current protection
The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class I Div. 2 and ATEX Zone 2 standards.
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.
