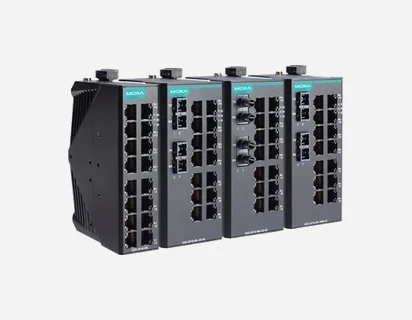

EDS-2016-ML Series
16 FE-port unmanaged Ethernet switches
Features
- 10/100BaseT(X) ports with RJ45 connector
- 100BaseFX optical fiber ports with SC or ST connector options
- Quality of Service (QoS) supported to process critical data in heavy traffic
- Broadcast storm protection
- Port break alarm function
- DIP switch configuration for flexible deployment
- Relay output warning for power failure and port break alarm
- IP30-rated metal housing
- Redundant dual 12/24/48 VDC power inputs
- -10 to 60°C operating temperature range (standard models)
- -40 to 75°C operating temperature range (-T models)
- DIN-rail mounting
- Compact size
- High-level EMI/EMC capability
- 100% burn-in test
- Auto negotiation speed and full/half duplex mode
- Auto MDI/MDI-X connection
The EDS-2016-ML Series of industrial Ethernet switches have up to 16 10/100M copper ports and two optical fiber ports with SC/ST connector type options, which are ideal for applications that require flexible industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2016-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.
In addition to its compact size, the EDS-2016-ML Series features 12/24/48 VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -10 to 60°C with -40 to 75°C wide temperature models available. The EDS-2016-ML Series has also passed a 100% burn-in test to ensure it will function reliably in the field.
