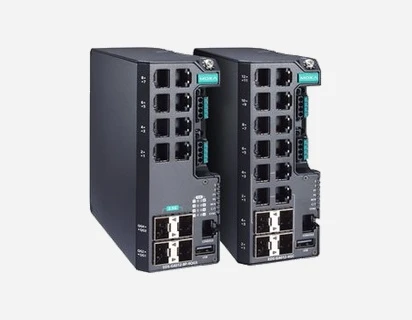

EDS-G4012 Series
8 1GbE, 4 1-to-2.5GbE-port managed Ethernet switches with 802.3bt PoE options
Features
- Support for IEEE 802.3bt PoE for up to 90 W output per port
- Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
- IEC 62443-4-2 Security Level 2 certified
- 8 1GbE and 4 1-to-2.5GbE-port managed Ethernet switches
- Auto MDI/MDI-X connection
- Auto negotiation speed
- Full/Half duplex mode
- IEEE 802.3 standards compliance (10BaseT, 100BaseT(X), 1000BaseT(X), 1000BaseX, 2.5GBaseX)
- IEEE 802.3x flow control
- IEEE 802.3ad Port Trunk with LACP
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1D-2004 Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1p Class of Service
- IEEE 802.1X authentication
- EtherNet/IP support
- Modbus TCP support
- PROFINET IO Device support
- IPv4/IPv6 support
- DHCP Server/Client
- SNMP Trap and Inform
- SNMPv1/v2c/v3
- RMON support
- TFTP and SFTP support
- HTTP and HTTPS support
- Port Mirroring (SPAN, RSPAN)
- IGMP Snooping v1/v2/v3
- Broadcast storm protection
- Rate Limit
- MAC Sticky
- SSH support
- RADIUS and TACACS+ support
- IEEE 1588v2 PTP (hardware-based)
- 16 K MAC Table Size
- 9.216 KB Jumbo Frame Size
The EDS-G4012 Series is equipped with 12 Gigabit Ethernet ports and up to four 1 Gbps or 2.5 Gbps fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. This Series also comes with eight 10/100/1000BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet port options to connect high-bandwidth PoE devices. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
