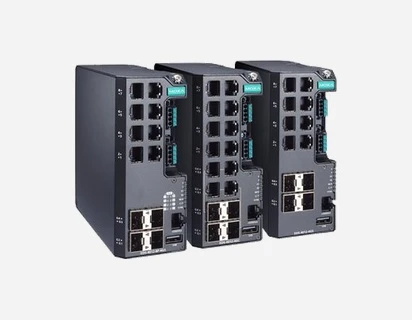

EDS-4012 Series
8 FE, 4 1GbE-port managed Ethernet switches with 802.3bt PoE options
Features
- Support for IEEE 802.3bt PoE for up to 90 W output per port
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)
- RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
- IEC 62443-4-2 Security Level 2 certified
- 12-port managed Fast Ethernet switches
- Optional four 1 Gbps fiber-optic uplink ports
- Models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options
- Industrial protocol support: EtherNet/IP, Modbus TCP, PROFINET IO Device
- Advanced redundancy protocols: Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MRP, MSTP
- Security features: Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, DHCP Snooping, TACACS+, Access control list
- Time management: SNTP, NTP Server/Client, NTP Authentication, IEEE 1588v2 PTP (hardware-based)
- Port Mirroring (SPAN, RSPAN)
- IGMP Snooping v1/v2/v3
- 16 K MAC Table Size
- 9.216 KB Jumbo Frame Size
- 256 VLAN support
- 512 IGMP Groups
- 4 Priority Queues
- 1 MB Packet Buffer Size
The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
