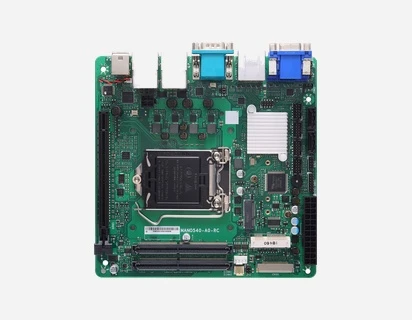

MANO540
Mini-ITX SBC with FCLGA1200 10th Gen Intel® Core™ i9/i7/i5/i3, DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN
Features
- FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor
- Intel® H410 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen1 and 5 USB 2.0
- 6 COM port
- 1 PCIe x16 and 1 M.2 Key E slot
- 1 full-size PCI Express Mini Card slot
- 2 SATA-600
- 1 M.2 Key B for USB 3.2 & SATA interface
Computer
CPUFCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Pentium® Gold/Celeron® processors (up to 65W)
ChipsetIntel® H410
System Memory2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
BatteryLithium 3V/220mAH
Display
GraphicsIntel® integrated Gfx graphic engine
Video MemoryShared system memory
Display Interfaces1 x DisplayPort++, 1 x HDMI 2.0, 1 x eDP, 1 x VGA
I/o interfaces
USB2 x USB 3.2 Gen1, 5 x USB 2.0
Serial2 x RS-232/422/485 (with +5V/+12V power), 4 x RS-232
AudioHD Codec audio (Realtek ALC897/888S) MIC-in/Line-out
Ethernet2 x 10/100/1000 Mbps (Intel® I210-AT and I219-V, Wake-on-LAN, PXE Boot ROM)
Digital I/O8-channel in/out programmed
TPMOnboard TPM 2.0 (optional)
Hardware MonitoringCPU/system temperature, voltage, fan speed detection
Storage
SATA2 x SATA-600
M.2 Key BFor USB 3.2 5G module & SATA, supports 2242/2280 SSD
M.2 Key E2230
Expansion
PCIe x161 slot
PCIe Mini Card1 full-size slot
M.2 Key E1 slot
M.2 Key B1 slot
Power
InputStandard 12V ATX power connector (24+4 pin ATX)
AT ModeAuto Power Function supported
Physical
Dimensions170 x 170 mm
Board Thickness1.6 mm
Form FactorMini-ITX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Relative Humidity10% to 95% non-condensing
