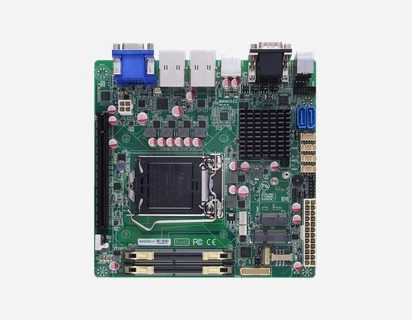

MANO522
Mini-ITX SBC with LGA1151 8th Gen Intel® Core™ i7/i5/i3 Processor, HDMI, VGA, LVDS, USB 3.2 Gen 1, mSATA, M.2 and Dual GbE LAN
Features
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 processor
- Intel® H310 chipset
- 2 DDR4 SO-DIMM for up to 64GB of memory
- 4 USB 3.2 Gen 1 and 2 USB 2.0
- 6 COM ports
- 2 SATA-600 and 1 mSATA
- PCIe x16 and M.2 Key E
- HDMI, VGA, and LVDS display outputs
- Dual GbE LAN with Wake-on-LAN and PXE Boot ROM
- HD audio codec (Realtek ALC662)
- 8-channel programmable digital I/O
- TPM 2.0 (fTPM 2.0)
- Hardware monitoring for CPU/system temperature, voltage, and fan speed
- Watchdog timer (255 levels, 1-255 sec)
Computer
CPULGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 processor (up to 65W)
ChipsetIntel® H310
System Memory2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 64GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
Display
GraphicsIntel® integrated Gfx graphic engine
Video MemoryShare system memory
VGA1 x VGA
HDMI1 x HDMI
LVDS1 x LVDS; 18/24-bit single/dual channel
I/o interfaces
Serial1 x RS-232/422/485 (with +5V/+12V power), 5 x RS-232
USB4 x USB 3.2 Gen 1, 2 x USB 2.0
Ethernet2 x 10/100/1000 Mbps (Intel® i211-AT and i219-LM with Wake-on-LAN and PXE Boot ROM)
AudioHD Codec audio MIC-in/Line-in/Line-out (Realtek ALC662)
Digital I/O8-channel in/out programmable
TPMFirmware TPM 2.0 (fTPM 2.0)
Hardware MonitoringCPU/system temperature, voltage, and fan speed
Storage
SATA2 x SATA-600
mSATA1 x mSATA
Expansion
PCIe1 x PCIe x16
M.21 x M.2 Key E 22 x 30
Power
Power Input24+4 pin ATX connector
BatteryLithium 3V/220mAH
AT ModeAuto Power Function supported
Physical
Dimensions170 x 170 mm
Board Thickness1.6 mm
Form FactorMini-ITX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Computer
CPULGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 processor (up to 65W)
ChipsetIntel® H310
System Memory2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 64GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
Display
GraphicsIntel® integrated Gfx graphic engine
Video MemoryShare system memory
VGA1 x VGA
HDMI1 x HDMI
LVDS1 x LVDS; 18/24-bit single/dual channel
I/o interfaces
Serial1 x RS-232/422/485 (with +5V/+12V power), 5 x RS-232
USB4 x USB 3.2 Gen 1, 2 x USB 2.0
Ethernet2 x 10/100/1000 Mbps (Intel® i211-AT and i219-LM with Wake-on-LAN and PXE Boot ROM)
AudioHD Codec audio MIC-in/Line-in/Line-out (Realtek ALC662)
Digital I/O8-channel in/out programmable
TPMFirmware TPM 2.0 (fTPM 2.0)
Hardware MonitoringCPU/system temperature, voltage, and fan speed
Storage
SATA2 x SATA-600
mSATA1 x mSATA
Expansion
PCIe1 x PCIe x16
M.21 x M.2 Key E 22 x 30
Power
Power Input24+4 pin ATX connector
BatteryLithium 3V/220mAH
AT ModeAuto Power Function supported
Physical
Dimensions170 x 170 mm
Board Thickness1.6 mm
Form FactorMini-ITX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
