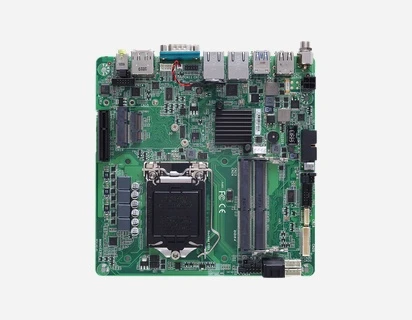

MANO521
Thin Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, DisplayPort++, HDMI, LVDS, VGA, USB 3.0, M.2 and Dual GbE LAN
Features
- LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 processor
- Intel® H310 chipset (Intel® Q370 optional)
- 2 DDR4 SO-DIMM for up to 64GB of memory
- 4 USB 3.0 and 4 USB 2.0 ports
- 2 COM ports
- 2 SATA-600, mSATA and M.2 Key M (NVMe)
- PCIe x4, M.2 Key E, and PCI Express Mini Card slots
- DisplayPort++, HDMI, LVDS, VGA display interfaces
- Dual GbE LAN with Wake-on-LAN and PXE Boot ROM support
- 8-channel digital I/O
- Hardware monitoring for CPU/system temperature, voltage and fan speed
- TPM 2.0 compliance with Infineon SLB9665TT
- HD audio codec with Realtek ALC662
Computer
ProcessorLGA1151 9th/8th Gen Intel® Core™ i7/i5/i3
ChipsetIntel® H310 (Intel® Q370 optional)
Memory2x DDR4 SO-DIMM, up to 64GB
BIOSStandard
Display
GraphicsIntel® integrated Gfx graphic engine
DisplayPort+1x
HDMI1x HDMI 1.4b (3840 x 2160 @ 30Hz)
LVDS1x (18/24-bit single/dual channel)
VGA1x (Wafer connector)
eDP1x (optional)
I/o interfaces
USB 3.04x
USB 2.04x
Serial1x RS-232/422/485, 1x RS-232
Ethernet2x 10/100/1000Mbps (Intel® i211-AT and Intel® i219-V with Wake-on-LAN and PXE Boot ROM)
AudioHD Codec with Realtek ALC662 (MIC-in/Line-in/Line-out)
Digital I/O8-channel in/out programmed
Storage
SATA2x SATA-600
mSATA1x
M.21x Key M (NVMe), 1x Key E
Expansion
PCIe x41x
PCI Express Mini Card1x
Monitoring
Hardware MonitoringCPU/system temperature, voltage and fan speed detection
TPMInfineon SLB9665TT 2.0 (TPM 2.0 compliant)
