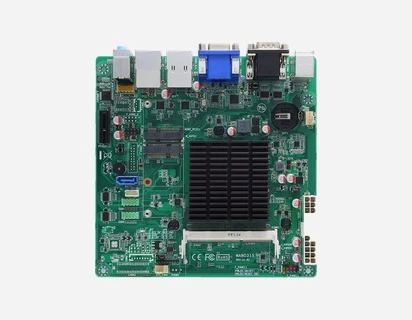

MANO315
Mini-ITX SBC with Intel® Celeron® Processor J3355 VGA, HDMI, USB 3.0, PCI Express Mini Card Slot, mSATA and HD Audio
Features
- Intel® Celeron® processor J3355 (Apollo Lake)
- DDR3L SO-DIMM for up to 8GB of memory
- 1 PCI Express Mini Card slot and PCIe x1
- 2 USB 3.0 and 4 USB 2.0
- 1 SATA-600 and 1 mSATA
- 4 COM supported
- Standard ATX 24-pin power
- VGA and HDMI supported
- HD Audio with Realtek ALC662
- 2 x 10/100/1000 Mbps Ethernet with Wake-on-LAN and PXE Boot ROM
- Mini-ITX form factor
Computer
CPUIntel® Celeron® J3355
ChipsetSoC integrated
System Memory1x204-pin DDR3L-1866 SO-DIMM, up to 8GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
Storage
SSD1x mSATA
SATA1 x SATA-600
Display
ChipsetIntel® integrated Gfx graphic engine
Memory SizeShared memory
Display Interface1 x VGA, 1 x HDMI
I/o interfaces
Ethernet2 x 10/100/1000 Mbps Ethernet with Realtek RTL8111F; support Wake-on-LAN, PXE Boot ROM
AudioHD Codec audio as Mic-in/Line-out with Realtek ALC662
USB2 x USB 2.0 (internal), 2 x USB 3.0, 2 x USB 2.0 (rear I/O)
Serial2 x RS-232 (rear I/O with +5V supported), 2 x RS-232
PS/2 Combo Port1 x PS/2 keyboard and mouse
TPMN/A
SMBusN/A
Digital I/ON/A
Expansion
Expansion Interface1x PCIe x1, 1x PCI Express Mini Card slot
Power
Power InputStandard ATX 24-pin power
BatteryLithium 3V/220mAH
Physical
Dimensions170x170mm
Board Thickness1.6mm
Environmental
Operating Temperature0℃ to +60℃ (+32℉ to +140℉)
Humidity10% to 95% relative humidity, non-condensing
