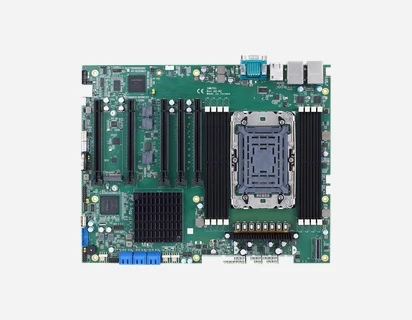

IMB701
ATX Motherboard with LGA4677 Socket 5th/4th Gen Intel® Xeon® Scalable Processors, Intel® C741, 5 PCIe x16, VGA, IPMI, USB 3.2, and NVMe
Features
- 5th/4th Gen Intel® Xeon® Scalable processors (Platinum, Gold, Silver, and Bronze), up to 350W TDP
- 8 DDR5-5200 R-DIMM ECC, up to 512GB memory
- 5 PCIe x16
- Supports M.2 Key M and MCIO
- Supports IPMI 2.0
- Supports multiple graphic cards
- Supports internal USB dongle
Computer
CPU SocketLGA4677 (Socket E)
CPU Support5th/4th Gen Intel Xeon Scalable processors (Platinum, Gold, Silver, Bronze), up to 350W TDP
ChipsetIntel C741
System Memory8 x DDR5-5200 R-DIMM ECC, up to 512GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
TPMTPM 2.0
SMBusYes
Display
ChipsetAST2600
Display Interface1 x VGA
Storage
Primary NVMe1 x M.2 Key M 2280 (PCIe Gen 5 x4)
Secondary NVMe1 x MCIO (PCIe Gen 4 x8) for 2 x NVMe SSD
SATA6 x SATA-600 with RAID 0/1/5/10
Expansion
Slot 1 & 2PCIe x16 (1 x Gen 5 x16 or 2 x Gen 5 x8 via jumper)
Slots 3, 4 & 5PCIe x16 (Gen 5 x16 link)
I/o interfaces
Ethernet2 x 10/100/1000 Mbps (Intel I210-AT)
IPMI LAN1 x dedicated port (Realtek RTL8211F)
USB 3.2 Gen 14 x rear + 2 x internal
USB 2.02 x internal + 1 x internal Type-A (dongle)
Serial1 x rear COM (RS-232 DB9) + 1 x internal COM (RS-232)
PS/21 x combo keyboard/mouse (internal header)
AudioHD audio interface (2 x 8-pin header)
Digital I/O8-channel TTL
Remote ManagementIPMI 2.0 (OpenBMC)
Physical
Dimensions305 x 244 mm
Board Thickness2.54 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Storage Temperature-20°C to +85°C (-4°F to +185°F)
Relative Humidity10% to 95% at +40°C, non-condensing
Software
OS CompatibilityWindows Server 2022, Linux Ubuntu 22.04
Computer
CPU SocketLGA4677 (Socket E)
CPU Support5th/4th Gen Intel Xeon Scalable processors (Platinum, Gold, Silver, Bronze), up to 350W TDP
ChipsetIntel C741
System Memory8 x DDR5-5200 R-DIMM ECC, up to 512GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
TPMTPM 2.0
SMBusYes
Display
ChipsetAST2600
Display Interface1 x VGA
Storage
Primary NVMe1 x M.2 Key M 2280 (PCIe Gen 5 x4)
Secondary NVMe1 x MCIO (PCIe Gen 4 x8) for 2 x NVMe SSD
SATA6 x SATA-600 with RAID 0/1/5/10
Expansion
Slot 1 & 2PCIe x16 (1 x Gen 5 x16 or 2 x Gen 5 x8 via jumper)
Slots 3, 4 & 5PCIe x16 (Gen 5 x16 link)
I/o interfaces
Ethernet2 x 10/100/1000 Mbps (Intel I210-AT)
IPMI LAN1 x dedicated port (Realtek RTL8211F)
USB 3.2 Gen 14 x rear + 2 x internal
USB 2.02 x internal + 1 x internal Type-A (dongle)
Serial1 x rear COM (RS-232 DB9) + 1 x internal COM (RS-232)
PS/21 x combo keyboard/mouse (internal header)
AudioHD audio interface (2 x 8-pin header)
Digital I/O8-channel TTL
Remote ManagementIPMI 2.0 (OpenBMC)
Physical
Dimensions305 x 244 mm
Board Thickness2.54 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Storage Temperature-20°C to +85°C (-4°F to +185°F)
Relative Humidity10% to 95% at +40°C, non-condensing
Software
OS CompatibilityWindows Server 2022, Linux Ubuntu 22.04
