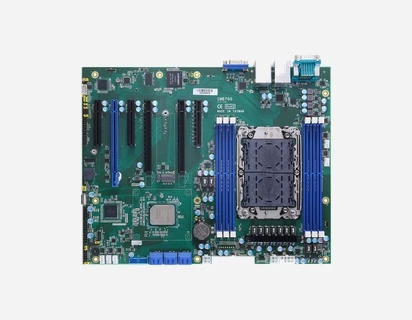

IMB700
ATX Motherboard with LGA4189 Socket 3rd Gen Intel® Xeon® Scalable Processors, Intel® C621A, 3 PCIe x16, 3 PCIe x8, VGA, and NVMe
Features
- 3rd gen Intel® Xeon® Scalable processors (Ice Lake-SP)
- Six 288-pin DDR4-3200 RDIMM for up to 384GB of memory
- 3 PCIe x16 and 3 PCIe x8 slots
- Supports M.2 Key M
- TPM 2.0 supported (optional)
- Supports multiple graphic cards
- Supports internal USB dongle
- 6 x SATA 3.0 with RAID 0/1/5/10
- PCIe x4 Gen4 M.2 NVMe support
- Dual 10/100/1000 Mbps Ethernet
- 4 x USB 3.1 Gen1 (rear) + 2 x USB 3.1 Gen1 (internal)
- 6 x USB 2.0 (internal) + 1 x USB 2.0 (180D)
- RS-232/422/485 serial port
- PS/2 keyboard and mouse combo port
- HD audio codec support (optional)
- 8-channel programmable digital I/O
- Hardware monitoring with Smart fan control
Computer
CPU3rd gen Intel® Xeon® Scalable processors (TDP up to 270W)
ChipsetIntel® C621A
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec.
Display
Display ChipsetAST2510
Display Interface1 x VGA
Storage
SSDM.2 key M 2280 with PCIe x4 signal
SATA6 x SATA-600 with RAID 0/1/5/10
Expansion
Slot 1PCIe x8
Slot 2PCIe x16 (Gen4)
Slot 3M.2 key M 2280 (signal: x4)
Slot 4PCIe x16 (Gen4)
Slot 5PCIe x8 slot (signal: x0 or x8)
Slot 6PCIe x16 (signal: x16 or x8)
Slot 7PCIe x8
I/o interfaces
Ethernet2 x 10/100/1000 Mbps (Intel® i210-AT)
USB 3.1 Gen14 x (rear) + 2 x (internal)
USB 2.06 x (internal) + 1 x (180D TypeA)
Serial1 x RS-232/422/485 (rear)
PS/21 x Combo (keyboard and mouse)
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 module (optional)
AudioHD Codec with MIC-in/Line-in/Line-out/Speaker-out (optional kit)
Hardware MonitoringCPU/system temperature, voltage detection, Smart fan control
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
SocketLGA4189
Memory
System Memory6 x DDR4-3200 R-DIMM ECC, up to 384GB
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
