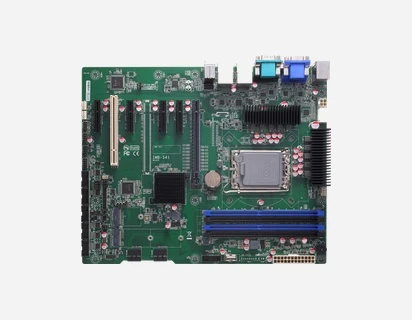

IMB541
ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670E, USB 3.2 Gen1x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DVI-D, and HDMI
Features
- LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
- Four 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
- Supports triple-view with VGA, DVI-D, and HDMI interfaces
- Supports M.2 Key M 2280 and Key E 2230
- 6 USB 3.2 Gen1x1 and 2 USB 3.2 Gen1x1 (internal)
- TPM 2.0 supported (optional)
Computer
CPU SocketLGA1700 for 14th/13th/12th Gen Intel Core i9/i7/i5/i3, Pentium, or Celeron (up to 125W)
ChipsetIntel Q670E
System Memory4 x 288-pin DDR4-3200 non-ECC Long-DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec
Display
Chipset GraphicsIntel UHD Graphics
MemoryShared system memory
VGAUp to 1920 x 1200 @60Hz
HDMI 1.4bUp to 4096 x 2160 @24Hz
DVI-DUp to 1920 x 1200 @60Hz
I/o interfaces
USB 3.2 Gen1x16 rear + 2 internal (5Gbps)
USB 2.04 internal pin header + 1 internal 180D Type-A
Serial1 x RS-232 rear I/O, 3 x RS-232 internal, 1 x RS-232/422/485 internal, 1 x RS-232/485 internal
PS/21 x PS/2 keyboard combo port (rear I/O)
Ethernet1 x 10/100/1000/2500 Mbps (Intel I225-V with Wake-on-LAN, PXE, TSN), 1 x 10/100/1000 Mbps (Intel I219-V)
AudioHD Codec (MIC-in/Line-in/Line-out)
Digital I/O8-channel programmable
SMBusYes
Storage
SATA4 x SATA-600 with RAID 0/1/5/10
M.2 Key M2280 with PCIe x4 via CPU
M.2 Key E2230 (PCIe x1 and USB 2.0)
Expansion
PCIe Gen4 x161 slot
PCIe x44 open-ended slots (Gen4 via PCH; slot 2 Gen3 only)
PCI1 x 32-bit slot (33 MHz default)
Power
BatteryLithium 3V/220mAH
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Certifications
TPMIntel PTT supported (TPM 2.0 optional, not included by default)
