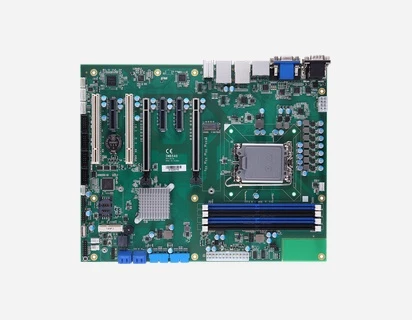

IMB540
ATX Motherboard with LGA1700 Socket Bartlett Lake S/14th/13th/12th Gen Intel® Core™ Processor, Intel® R680E, USB 3.2 Gen 2, SATA 3.0, GbE and 2.5GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI
Features
- LGA1700 socket BTL-S/14th/13th/12th Gen Intel® Core™ processor
- Four 288-pin DDR4-3200 ECC/non-ECC unbuffered Long-DIMM, up to 128GB
- Supports DisplayPort++, VGA, DVI-D, and HDMI with quad-view
- Supports M.2 Key M 2280
- Supports 2 PCIe x16 slots with PCIe Gen 5 for GPU cards
- Supports TPM 2.0 (optional)
Computer
CPU SocketLGA1700 socket BTL-S/14th/13th/12th Gen Intel Core processor, up to 125W
ChipsetIntel R680E
System Memory4 x 288-pin DDR4-3200 ECC/non-ECC unbuffered Long-DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec
Display
GraphicsIntel UHD Graphics
MemoryShare system memory
VGAUp to 1920 x 1200 @ 60Hz
HDMI 1.4bUp to 4096 x 2160 @ 24Hz
DisplayPort++ (DP 1.2)Up to 4096 x 2304 @ 60Hz
DVI-DUp to 1920 x 1200 @ 60Hz
Storage
SSDM.2 key M 2280 in support of PCIe x4 via CPU
SATA4 x SATA-600 with RAID 0/1/5/10
Expansion
PCIe Gen 52 x PCIe Gen 5 x16 slot (signal: PCIe x16 + PCIe x0 or PCIe x8 + PCIe x8)
PCIe Gen 42 x PCIe x4 slot (signal by PCH)
PCIe Gen 31 x PCIe x4 slot (signal by PCH)
PCIe Mini Card1 x PCIe Mini Card slot (signal: PCIe x1)
PCI2 x 32-bit PCI slot, default clock 33 MHz, selectable 33 or 66 MHz by jumper
I/o interfaces
USB 3.2 Gen 24 x USB 3.2 Gen 2x1 (10G) rear I/O
USB 3.2 Gen 12 x Dual USB 3.2 Gen 1x1 (5G) internal
USB 2.04 x USB 2.0 internal pin header, 1 x USB 2.0 internal 180D Type-A
Serial4 x RS-232 internal box header, 2 x RS-232/422/485 rear I/O
Ethernet1 x 10/100/1000/2500 Mbps Intel I226-LM with Wake-on-LAN, PXE Boot ROM, TSN, Intel AMT with Intel vPro; 1 x 10/100/1000 Mbps Intel I210-AT with Wake-on-LAN and PXE Boot ROM
AudioHD Codec audio MIC-in/Line-in/Line-out
PS/21 x PS/2 keyboard internal, 1 x PS/2 mouse internal
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 optional
Power
BatteryLithium 3 V/220 mAH
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Computer
CPU SocketLGA1700 socket BTL-S/14th/13th/12th Gen Intel Core processor, up to 125W
ChipsetIntel R680E
System Memory4 x 288-pin DDR4-3200 ECC/non-ECC unbuffered Long-DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec
Display
GraphicsIntel UHD Graphics
MemoryShare system memory
VGAUp to 1920 x 1200 @ 60Hz
HDMI 1.4bUp to 4096 x 2160 @ 24Hz
DisplayPort++ (DP 1.2)Up to 4096 x 2304 @ 60Hz
DVI-DUp to 1920 x 1200 @ 60Hz
Storage
SSDM.2 key M 2280 in support of PCIe x4 via CPU
SATA4 x SATA-600 with RAID 0/1/5/10
Expansion
PCIe Gen 52 x PCIe Gen 5 x16 slot (signal: PCIe x16 + PCIe x0 or PCIe x8 + PCIe x8)
PCIe Gen 42 x PCIe x4 slot (signal by PCH)
PCIe Gen 31 x PCIe x4 slot (signal by PCH)
PCIe Mini Card1 x PCIe Mini Card slot (signal: PCIe x1)
PCI2 x 32-bit PCI slot, default clock 33 MHz, selectable 33 or 66 MHz by jumper
I/o interfaces
USB 3.2 Gen 24 x USB 3.2 Gen 2x1 (10G) rear I/O
USB 3.2 Gen 12 x Dual USB 3.2 Gen 1x1 (5G) internal
USB 2.04 x USB 2.0 internal pin header, 1 x USB 2.0 internal 180D Type-A
Serial4 x RS-232 internal box header, 2 x RS-232/422/485 rear I/O
Ethernet1 x 10/100/1000/2500 Mbps Intel I226-LM with Wake-on-LAN, PXE Boot ROM, TSN, Intel AMT with Intel vPro; 1 x 10/100/1000 Mbps Intel I210-AT with Wake-on-LAN and PXE Boot ROM
AudioHD Codec audio MIC-in/Line-in/Line-out
PS/21 x PS/2 keyboard internal, 1 x PS/2 mouse internal
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 optional
Power
BatteryLithium 3 V/220 mAH
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
