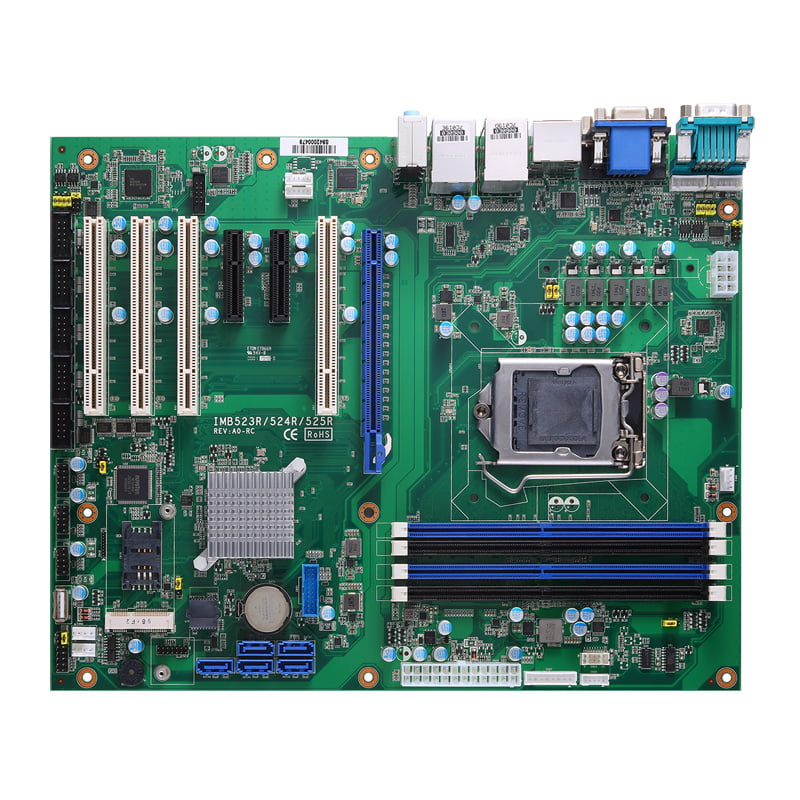

IMB525R
Industrial ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor and Intel® Q370
Features
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 ECC DIMM for up to 128GB of memory
- DisplayPort, DVI-D, HDMI and VGA with triple-view supported
- 5 SATA-600 with RAID 0/1/5/10
- 1 PCI Express Mini Card slot
- 2 USB 3.2 Gen2 and four USB 3.2 Gen1
- TPM 2.0 supported (optional)
Computer
CPU SocketLGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 95W)
System Memory4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 128GB (Intel® Core™ i7/i5 only support non-ECC)
ChipsetIntel® C246
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Display
Graphics ChipsetIntel® HD Graphic
Memory SizeShare system memory
VGA1 x VGA
DVI-D1 x DVI-D
HDMI1 x HDMI
DisplayPort1 x DisplayPort++
Storage
SATA5 x SATA-600 with RAID 0/1/5/10
I/o interfaces
USB 3.2 Gen22 x USB 3.2 Gen 2x1 (10Gbps) (rear I/O)
USB 3.2 Gen14 x USB 3.2 Gen 2x1 (5Gbps) (rear I/O, internal box header)
USB 2.07 x USB 2.0 (pin header, 180D type A)
Serial4 x RS-232 (Internal box header); 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
PS/21 x PS/2 keyboard and mouse combo port
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM (Wake-on-LAN, PXE Boot ROM, iAMT); 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT (Wake-on-LAN, PXE Boot ROM)
AudioHD Codec audio MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
TPMTPM 2.0 (optional)
SMBusYes
Expansion
PCIe x16 Slot1 x PCIe x16 slot
PCIe x4 Slot2 x PCIe x4 slot
PCI Slot4 x PCI slot
PCIe Mini Card1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V/ 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Monitoring
Hardware MonitoringDetect CPU/system temperature, voltage and supports Smart fan control
Computer
CPU SocketLGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 95W)
System Memory4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 128GB (Intel® Core™ i7/i5 only support non-ECC)
ChipsetIntel® C246
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Display
Graphics ChipsetIntel® HD Graphic
Memory SizeShare system memory
VGA1 x VGA
DVI-D1 x DVI-D
HDMI1 x HDMI
DisplayPort1 x DisplayPort++
Storage
SATA5 x SATA-600 with RAID 0/1/5/10
I/o interfaces
USB 3.2 Gen22 x USB 3.2 Gen 2x1 (10Gbps) (rear I/O)
USB 3.2 Gen14 x USB 3.2 Gen 2x1 (5Gbps) (rear I/O, internal box header)
USB 2.07 x USB 2.0 (pin header, 180D type A)
Serial4 x RS-232 (Internal box header); 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
PS/21 x PS/2 keyboard and mouse combo port
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM (Wake-on-LAN, PXE Boot ROM, iAMT); 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT (Wake-on-LAN, PXE Boot ROM)
AudioHD Codec audio MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
TPMTPM 2.0 (optional)
SMBusYes
Expansion
PCIe x16 Slot1 x PCIe x16 slot
PCIe x4 Slot2 x PCIe x4 slot
PCI Slot4 x PCI slot
PCIe Mini Card1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V/ 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Monitoring
Hardware MonitoringDetect CPU/system temperature, voltage and supports Smart fan control
