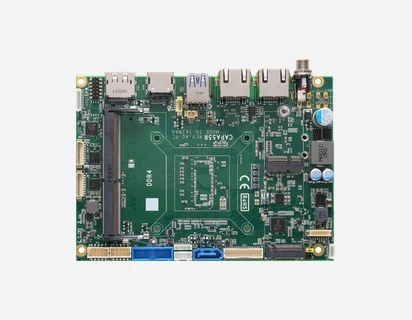

CAPA55R
3.5” Embedded SBC with 11th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, DisplayPort++, HDMI, LVDS, GbE LAN, and 2.5 GbE LAN
Features
- 11th Gen Intel® Core™ i7/i5/i3 & Celeron® processor
- 2 DDR4 SO-DIMM for up to 64GB of memory
- GbE LAN and 2.5GbE LAN ports
- 3 M.2 expansion slots
- DisplayPort++, HDMI, LVDS display interfaces
- TPM 2.0 on board
- 8-channel digital I/O
- 2x RS-232/422/485 serial ports
- 3x USB 3.2 Gen 2 ports
- 4x USB 2.0 ports
- Hardware monitoring for CPU/system temperature, voltage and fan speed
- AMI BIOS
- Watchdog timer with 65536 levels (0 to 65535 sec)
- Lithium 3V/220mAh battery
- M.2 Key M for SSD (PCIe x4)
- M.2 Key E expansion (PCIe x1, USB 2.0)
- M.2 Key B expansion (PCIe x1, USB 3.2 Gen 2, USB 2.0)
- SIM connector via pin header
- 1x SATA-600
- HD Audio link via pin header
- SMBus compatible with I²C
Computer
Processor11th Gen Intel® Core™ i7/i5/i3 & Celeron® processor (cTDP up to 28W)
System Memory2x260-pin dual-channel DDR4-3200MHz SO-DIMM, up to 64GB
BIOSAMI
Watchdog Timer65536 levels, 0 to 65535 sec
TPMTPM 2.0 on board
Display
ChipsetIntel® integrated Gfx graphic engine
Memory SizeShare system memory
Display Interface1x HDMI 1.4, 1x LVDS (18/24-bit single/dual channel), 1x DisplayPort++, 1x eDP (optional)
Storage
SSD1x M.2 Key M (PCIe x4 in 22x80)
SATA1x SATA-600
Expansion
M.2 Key EPCIe x1, USB 2.0 in 22x30
M.2 Key BPCIe x1, USB 3.2 Gen 2, USB 2.0 in 30x42 or 30x50
SIM Connectorvia pin header
I/o interfaces
Ethernet1x 10/100/1000 Mbps with Intel® I219-LM, 1x 10/100/1000/2500 Mbps with Intel® I226
USB3x USB 3.2 Gen 2, 4x USB 2.0
Serial2x RS-232/422/485
AudioHD Audio link via pin header
Digital I/O8-channel in/out programmed
SMBusYes, compatible with I²C
Hardware MonitoringDetect CPU/system temperature, voltage and fan speed
Power
Power Input1x DC Jack 12V to 24V DC, AT Auto Power On function supported
BatteryLithium 3V/220mAh
Physical
Dimensions146 x 104 mm
Board Thickness1.6 mm
Environmental
Operating Temperature (Fan)0°C to +60°C
Operating Temperature (Heatsink)-20°C to +60°C
Relative Humidity10% to 95%, non-condensing
