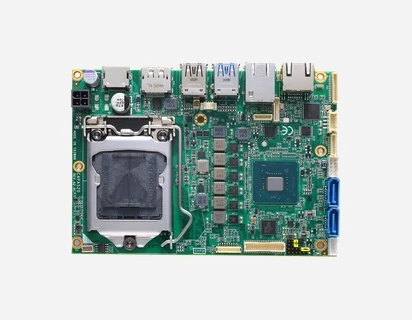

CAPA520
3.5” Embedded SBC with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN
Features
- LGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor support
- Intel® H310/Q370 chipset options
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 3 GbE LAN connectivity
- 1 PCI Express Mini Card slot with mSATA support
- DisplayPort, HDMI, and LVDS display interfaces
- 3 x USB 3.2 and 3 x USB 2.0 ports
- 2 x SATA-600 interfaces
- 1 x RS-232/422/485 serial port
- 8-channel digital I/O (programmable in/out)
- Intel® AMT 12 supported (optional)
- Wake-on-LAN and PXE Boot ROM support
- Hardware monitoring for CPU/system temperature, voltage, and fan speed
- HD Audio link
- SMBus interface
- Watchdog timer with 255 levels (1-255 seconds)
- ZIO connector for PCIe x1, USB, LPC, and SMBus
- AT Auto power on function supported
Computer
ProcessorLGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® (TDP 35W)
ChipsetIntel® H310/Intel® Q370
System Memory1x260-pin DDR4-2666 SO-DIMM, up to 16GB
BIOSAMI
Display
ChipsetIntel integrated Gfx graphic engine
MemoryShare system memory
Display Interfaces1 x HDMI, 1 x LVDS (18/24-bit single/dual channel), 1 x DisplayPort
I/o interfaces
Ethernet1 x 10/100/1000 Mbps with Intel® I210-AT (Wake-on-LAN, PXE Boot ROM), 1 x 10/100/1000 Mbps with Intel® I219-LM (Wake-on-LAN, PXE Boot ROM), 1 x 10/100/1000 Mbps with Intel® I210-AT optional (Wake-on-LAN, PXE Boot ROM)
USB3 x USB 3.2, 3 x USB 2.0
Serial1 x RS-232/422/485
AudioHD Audio link
Digital I/O8-channel in/out programmable
SMBusYes
Hardware MonitoringCPU/system temperature, voltage, and fan speed detection
Storage
SATA2 x SATA-600
SSD1 x mSATA (optional)
Expansion
PCI Express Mini Card1 slot with mSATA support
ZIO Connector1 x PCIe x1, 1 x USB, 1 x LPC, 1 x SMBus
Power
Power Input2 x 2-pin connector, +12V DC-in only
BatteryLithium 3V/220 mAh
AT Auto power on functionSupported
Physical
Form Factor3.5" Embedded SBC
Dimensions146 x 104 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-20℃ to +60℃ (-4°F to 140°F)
Relative Humidity10% to 95%, non-condensing
Certifications
TPMN/A
