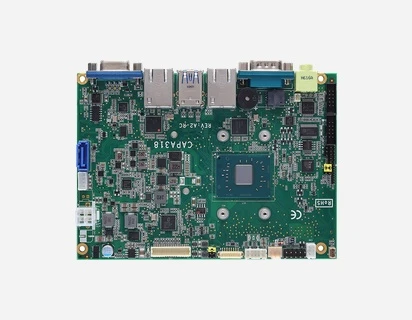

CAPA318
3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, VGA/LVDS, Dual LANs and Audio
Features
- Intel® Pentium® processor N4200/Celeron® processor N3350
- 1 DDR3L SO-DIMM, up to 8GB
- 2 USB 2.0 and 2 USB 3.0
- PCI Express Mini Card slot with mSATA supported
- VGA/LVDS display interfaces
- Dual GbE LANs
- Audio support
- 3.5" form factor
- Watchdog Timer (65536 levels, 1 to 65535 sec)
- AT Auto Power On function supported
Computer
CPUIntel® Pentium® processor N4200 or Celeron® processor N3350 onboard
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC Integrated
BIOSAMI
Watchdog Timer65536 levels, 1 to 65535 sec
Display
ChipsetIntel® integrated Gfx graphic engine
Memory SizeShare System memory
Display Interface1x VGA, 1x LVDS (18/24-bit single/dual channel)
I/o interfaces
USB2x USB 2.0 and 2x USB 3.0
NetworkDual GbE LANs
AudioSupported
Storage
SSDN/A
Power
Power Input2x2-pin connector, +12V DC-in only
Power Requirements (Pentium N4200@1.1GHz, 8GB DDR3L)Max RMS +12V@1.5A
Power Requirements (Celeron N3350@1.1GHz, 8GB DDR3L)Max RMS +12V@1.3A
BatteryLithium 3V/220mAH
Physical
Size146x104mm
Board Thickness1.6mm
Form Factor3.5" Embedded SBC
Environmental
Operating Temperature-20℃ to +70℃ (-4°F to +158°F)
Relative Humidity10% to 95% non-condensing
