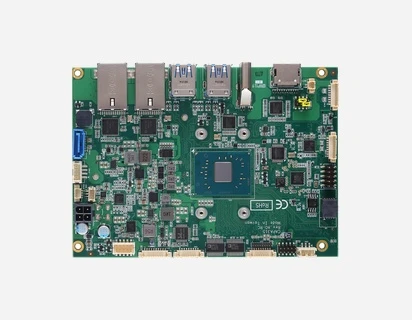

CAPA315
3.5” Embedded SBC with Intel® Pentium® N4200 & Celeron® N3350 Processor, Dual HDMI, eDP, Dual GbE LANs and Audio
Features
- Intel® Pentium® N4200/Celeron® N3350 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 4 USB 3.0
- 2 HDMI and 1 eDP
- 1 PCI Express Mini Card slot
- 2 GbE LAN
- Audio
- mSATA SSD support
- Watchdog Timer
- AT Auto Power On function supported
Computer
CPUIntel® Pentium® processor N4200 or Celeron® processor N3350 onboard
System Memory1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer65536 levels, 1 to 65535 sec.
Storage
SSD1 x mSATA
Display
Display ChipsetIntel® integrated Gfx graphic engine
Memory SizeShare system memory
Display Interface2 x HDMI, 1 x eDP
I/o interfaces
USB2 USB 2.0 and 4 USB 3.0
LAN2 GbE LAN
AudioSupported
Expansion
Expansion Interface1 x Full-size PCI Express Mini Card slot
Power
Power Input2x 2-pin DC in power connector, +12V DC-in only
Power Requirements (Pentium® N4200 @ 1.1 GHz, 8GB DDR3L)Max.RMS +12V@1.5A
Power Requirements (Celeron® N3350 @ 1.1 GHz, 8GB DDR3L)Max.RMS +12V@1.2A
BatteryLithium 3V/220mAH
Physical
Dimensions146 x 104 mm
Board Thickness1.6mm
Environmental
Operating Temperature-20 to +70℃ (-4°F to +158°F)
Humidity10% to 95% relative humidity, non-condensing
