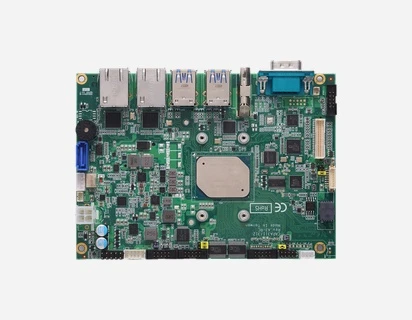

CAPA311
3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio
Features
- Intel Atom® x5-E3940 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 4 USB 3.0
- 2 full-size PCI Express Mini Card slots
- 2 GbE LAN with Intel I210-AT
- HDMI and LVDS display interfaces
- HD Audio codec with Mic-in/Line-in/Line-out
- TPM 2.0 compliant security chip
- 8-channel programmable digital I/O
- Hardware monitoring for temperature, voltage and fan speed
- Wake-on-LAN and PXE Boot ROM support
- mSATA support on one PCI Express Mini Card slot
- 1x SATA-600 interface
- 2x RS-232/422/485 and 2x RS-232 serial ports
- SMBus compatible with I2C
- Watchdog Timer with 65536 levels
- AT Auto Power On function supported
Computer
ProcessorIntel Atom® x5-E3940 processor
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
TPMSTST33HTPH2X32AHD8 with TPM 2.0 compliant
Watchdog Timer65536 levels, 1 to 65535 seconds
BatteryLithium 3V/220mAh
Display
Graphics ChipsetIntel® integrated Gfx graphic engine
Memory SizeShared system memory
Display Interface1x HDMI, 1x LVDS (18/24-bit single/dual channel), 1x VGA (optional), 1x eDP (optional)
I/o interfaces
USB2x USB 2.0, 4x USB 3.0
Ethernet2x 10/100/1000Mbps Ethernet with Intel I210-AT; support Wake-on-LAN, PXE Boot ROM
Serial2x RS-232/422/485, 2x RS-232
AudioHD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC888S
Digital I/O8-channel in/out programmable
SMBusYes; compatible with I2C
Storage
SATA1x SATA-600
Expansion
PCI Express Mini Card1x Full-size PCI Express Mini Card slot with mSATA supported, 1x Full-size PCI Express Mini Card slot
SIM Slot1x SIM slot
Power
Power Input2x2-pin connector +12V DC-in only; AT Auto Power On function supported
Power RequirementsIntel Atom x5-E3940@1.1GHz 8GB DDR3L Max RMS: +12V@1.1A
Physical
Dimensions146x104mm
Board Thickness1.6mm
Environmental
Operating Temperature-40°C to +80°C (-40°F to +185°F)
Humidity10%-95% relative humidity, non-condensing
Computer
ProcessorIntel Atom® x5-E3940 processor
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
TPMSTST33HTPH2X32AHD8 with TPM 2.0 compliant
Watchdog Timer65536 levels, 1 to 65535 seconds
BatteryLithium 3V/220mAh
Display
Graphics ChipsetIntel® integrated Gfx graphic engine
Memory SizeShared system memory
Display Interface1x HDMI, 1x LVDS (18/24-bit single/dual channel), 1x VGA (optional), 1x eDP (optional)
I/o interfaces
USB2x USB 2.0, 4x USB 3.0
Ethernet2x 10/100/1000Mbps Ethernet with Intel I210-AT; support Wake-on-LAN, PXE Boot ROM
Serial2x RS-232/422/485, 2x RS-232
AudioHD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC888S
Digital I/O8-channel in/out programmable
SMBusYes; compatible with I2C
Storage
SATA1x SATA-600
Expansion
PCI Express Mini Card1x Full-size PCI Express Mini Card slot with mSATA supported, 1x Full-size PCI Express Mini Card slot
SIM Slot1x SIM slot
Power
Power Input2x2-pin connector +12V DC-in only; AT Auto Power On function supported
Power RequirementsIntel Atom x5-E3940@1.1GHz 8GB DDR3L Max RMS: +12V@1.1A
Physical
Dimensions146x104mm
Board Thickness1.6mm
Environmental
Operating Temperature-40°C to +80°C (-40°F to +185°F)
Humidity10%-95% relative humidity, non-condensing
