CAPA310

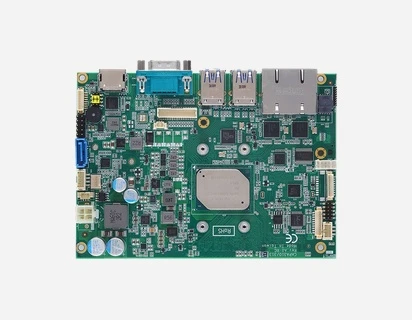

3.5” Embedded SBC with Intel® Atom® x5-E3940 Processor, LVDS, HDMI, 2 GbE LANs and Audio
Features
- Intel Atom® x5-E3940 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 1 PCI Express Mini Card slot
- ZIO connector
- 2 USB 2.0 and 4 USB 3.0
- 1 x HDMI display interface
- 1 x LVDS display interface (18/24-bit single/dual channel)
- 2 x 10/100/1000 Mbps Ethernet with Intel I210-AT
- Wake-on-LAN and PXE Boot ROM support
- HD Codec audio with Realtek ALC888S
- 1 x mSATA SSD slot
- 1 x SATA-600 interface
- 2 x RS-232/422/485 serial ports
- 8-channel digital I/O
- Hardware monitoring for CPU/system temperature and voltage
- Watchdog timer (65536 levels, 1 to 65535 sec)
- SMBus support
- i2C interface
- AT Auto power on function supported
Computer
CPUIntel Atom® x5-E3940 processor onboard
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Cache2MB
Clock Speed1.6 to 1.8 GHz
TDP9.5W
Display
GraphicsIntel integrated Gfx graphic engine
Memory SizeShare system memory
Display Interface1 x HDMI, 1 x LVDS (18/24-bit single/dual channel), 1 x VGA (optional)
I/o interfaces
Ethernet2 x 10/100/1000 Mbps Ethernet with Intel I210-AT; support Wake-on-LAN, PXE Boot ROM
AudioHD Codec audio as MIC-in/Line-in/Line out with Realtek ALC888S
USB2 x USB 2.0, 4 x USB 3.0
Serial2 x RS-232/422/485
Digital I/O8-channel in/out programmed
SMBusYes
i2C1 x interface
Hardware MonitoringDetect CPU/system temperature and voltage
Storage
SSD1 x mSATA
SATA1 x SATA-600
Expansion
PCI Express Mini Card1 x full-size PCI Express Mini Card slot
PCIe1 x PCIe x1
LPC1 x LPC
ZIO Connector1 x SMBus through a ZIO connector
Power
BatteryLithium 3V/220mAH
Power Input2 x 2 pin connector, +12V to 24 VDC-in
Power RequirementsIntel Atom x5-E3940@1.6GHz 8GB DDR3L, Max. RMS: +24V@0.8A
AT Auto power on functionSupported
Physical
Dimensions146 x 104 mm
Board Thickness1.6 mm
Form Factor3.5" Embedded SBC
Environmental
Operating Temperature-40°C to +80°C (-40°F to 185°F)
Relative Humidity10% to 95% relative humidity, non-condensing
Certifications
TPMST ST33HTPH2X32AHD8 with TPM 2.0 compliant (optional)
Computer
CPUIntel Atom® x5-E3940 processor onboard
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Cache2MB
Clock Speed1.6 to 1.8 GHz
TDP9.5W
Display
GraphicsIntel integrated Gfx graphic engine
Memory SizeShare system memory
Display Interface1 x HDMI, 1 x LVDS (18/24-bit single/dual channel), 1 x VGA (optional)
I/o interfaces
Ethernet2 x 10/100/1000 Mbps Ethernet with Intel I210-AT; support Wake-on-LAN, PXE Boot ROM
AudioHD Codec audio as MIC-in/Line-in/Line out with Realtek ALC888S
USB2 x USB 2.0, 4 x USB 3.0
Serial2 x RS-232/422/485
Digital I/O8-channel in/out programmed
SMBusYes
i2C1 x interface
Hardware MonitoringDetect CPU/system temperature and voltage
Storage
SSD1 x mSATA
SATA1 x SATA-600
Expansion
PCI Express Mini Card1 x full-size PCI Express Mini Card slot
PCIe1 x PCIe x1
LPC1 x LPC
ZIO Connector1 x SMBus through a ZIO connector
Power
BatteryLithium 3V/220mAH
Power Input2 x 2 pin connector, +12V to 24 VDC-in
Power RequirementsIntel Atom x5-E3940@1.6GHz 8GB DDR3L, Max. RMS: +24V@0.8A
AT Auto power on functionSupported
Physical
Dimensions146 x 104 mm
Board Thickness1.6 mm
Form Factor3.5" Embedded SBC
Environmental
Operating Temperature-40°C to +80°C (-40°F to 185°F)
Relative Humidity10% to 95% relative humidity, non-condensing
Certifications
TPMST ST33HTPH2X32AHD8 with TPM 2.0 compliant (optional)
