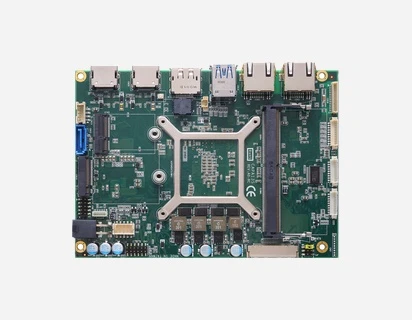

CAPA13S
3.5" Embedded SBC with AMD Ryzen™ Embedded V1807B/V1605B APU, DisplayPort++, 2 HDMI, eDP, and 3 GbE LAN
Features
- AMD Ryzen™ Embedded V1807B and V1605B APU
- 1 DDR4 SO-DIMM for up to 16GB of memory
- Supports quad-view 4K/2K display
- 3 GbE LAN
- M.2 Key E
- M.2 Key B
- DisplayPort++
- 2 HDMI
- eDP display interface
- HD Codec audio with Realtek ALC662
- 2 x USB 3.2 Gen2
- 2 x USB 2.0
- RS-232/422/485 serial port
- TPM 2.0 compliant
- 8-channel digital I/O
- Hardware monitoring (CPU/system temperature, voltage, fan speed)
- Wake-on-LAN and PXE Boot ROM support
- Watchdog Timer (255 levels, 1-255 sec)
Computer
CPUAMD Ryzen™ Embedded V1807B/V1605B APU onboard
System Memory1x260-pin DDR4-2400 (V1605B), DDR4-3200 (V1807B) SO-DIMM, up to 16GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
BatteryLithium 3V/220mAh
Display
Display ChipsetAMD Radeon™ RX Vega Graphics
Memory SizeShare System memory
Display Interface1x DisplayPort++, 2x HDMI, 1x eDP
I/o interfaces
Ethernet2 x 10/100/1000 Mbps Ethernet with Realtek RTL8111G; support Wake-on-LAN, PXE Boot ROM; 1 x 10/100/1000 Mbps Ethernet with Realtek RTL8111G (optional)
AudioHD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC662
USB2 x USB 2.0, 2 x USB 3.2 Gen2
Serial1 x RS-232/422/485, 1 x RS-232
TPMST ST33HTPH2E32AHB4 with TPM 2.0 compliant
Digital I/O8-channel in/out programmed
Hardware MonitoringDetect CPU/system temperature, voltage and fan speed
Storage
SATA1 x SATA-600
SSD1x M.2 Key B (SATA, USB 2.0, PCIe x2 for optional) in 22x42 or 30x42
Expansion
Expansion Interface1x M.2 Key E (PCIe x1, USB 2.0) in 22x30
Power
Power Input2x 2-pin connector + 12VDC-in only; AT Auto Power On function supported
Power RequirementAMD V1605B @ 2.0GHz 16GB DDR4, min. RMS +12V @ 3.1A; AMD V1807B @ 3.35GHz 16GB DDR4, min. RMS +12V @ 5.1A
Physical
Dimensions146 x 104 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-20°C to +60°C (-4°F to 140°F)
Humidity10% - 95% relative humidity, non-condensing
Computer
CPUAMD Ryzen™ Embedded V1807B/V1605B APU onboard
System Memory1x260-pin DDR4-2400 (V1605B), DDR4-3200 (V1807B) SO-DIMM, up to 16GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec
BatteryLithium 3V/220mAh
Display
Display ChipsetAMD Radeon™ RX Vega Graphics
Memory SizeShare System memory
Display Interface1x DisplayPort++, 2x HDMI, 1x eDP
I/o interfaces
Ethernet2 x 10/100/1000 Mbps Ethernet with Realtek RTL8111G; support Wake-on-LAN, PXE Boot ROM; 1 x 10/100/1000 Mbps Ethernet with Realtek RTL8111G (optional)
AudioHD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC662
USB2 x USB 2.0, 2 x USB 3.2 Gen2
Serial1 x RS-232/422/485, 1 x RS-232
TPMST ST33HTPH2E32AHB4 with TPM 2.0 compliant
Digital I/O8-channel in/out programmed
Hardware MonitoringDetect CPU/system temperature, voltage and fan speed
Storage
SATA1 x SATA-600
SSD1x M.2 Key B (SATA, USB 2.0, PCIe x2 for optional) in 22x42 or 30x42
Expansion
Expansion Interface1x M.2 Key E (PCIe x1, USB 2.0) in 22x30
Power
Power Input2x 2-pin connector + 12VDC-in only; AT Auto Power On function supported
Power RequirementAMD V1605B @ 2.0GHz 16GB DDR4, min. RMS +12V @ 3.1A; AMD V1807B @ 3.35GHz 16GB DDR4, min. RMS +12V @ 5.1A
Physical
Dimensions146 x 104 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-20°C to +60°C (-4°F to 140°F)
Humidity10% - 95% relative humidity, non-condensing
