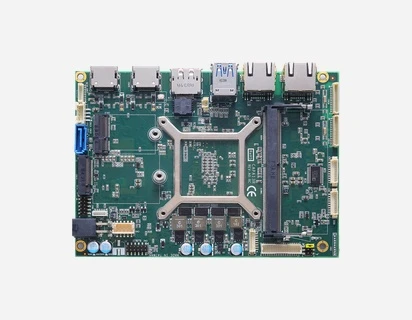

CAPA13R
3.5” Embedded SBC with AMD Ryzen™ Embedded V1807B/V1605B APU, DisplayPort++, 2 HDMI, LVDS, and 4 GbE LAN
Features
- AMD Ryzen™ Embedded V1807B and V1605B APU
- 1 DDR4 SO-DIMM for up to 16GB of memory
- Supports quad-view display
- 4 GbE LAN
- M.2 Key E
- M.2 Key B
- 1xSATA-600
- Hardware Monitoring (CPU/system temperature, voltage and fan speed)
- 2x10/100/1000Mbps Ethernet with Realtek RTL8111G
- Wake-on-LAN support
- PXE Boot ROM (optional)
- HD audio link
- 2xUSB2.0
- 2xUSB3.2Gen2
- 1xRS-232/422/485
- 1xRS-232
- TPM 2.0 compliant
- 8-channel Digital I/O
- DisplayPort++
- 2 HDMI
- 2.5GbE LAN
- Heatsink
Computer
ProcessorAMD Ryzen™ Embedded V1807B (3.35 - 3.8 GHz, 2MB Cache, 45W) or V1605B (2.0 - 3.6 GHz, 2MB Cache, 15W)
Memory1 DDR4 SO-DIMM for up to 16GB
I/o interfaces
Ethernet2x10/100/1000Mbps with Realtek RTL8111G or 4x GbE LAN options
USB2xUSB2.0, 2xUSB3.2Gen2
Serial1xRS-232/422/485, 1xRS-232
AudioHD audio link
Digital I/O8-channel in/out programmed
Storage
SATA1xSATA-600
Expansion
TPMST ST33HTPH2E32AHB4 with TPM 2.0 compliant
Physical
Form Factor3.5" Embedded SBC
Dimensions146 x 104 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-20°C to +60°C (-4°F to 140°F)
Humidity10% - 95% relative humidity, non-condensing
