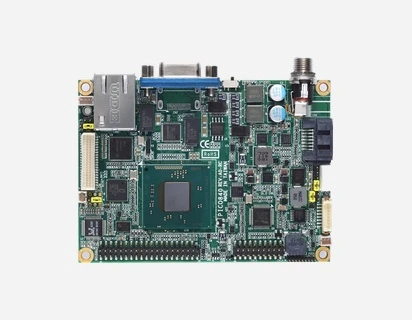

PICO842
Pico-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA (HDMI), LAN and Audio
Features
- Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
- 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
- 4 USB 2.0 ports
- 2 COM ports (RS-232/422/485 selectable)
- PCI Express Mini Card slot with mSATA supported
- LVDS/VGA (HDMI) display output
- 1GbE LAN with Wake-on-LAN and PXE Boot ROM
- HD audio with Realtek ALC662 codec
- 1 SATA-300 interface
- Hardware monitoring for CPU/system temperature and voltage
- TPM 1.2 compliant security
- +12V power input
- Lithium 3V/220mAH battery
- Compact Pico-ITX form factor (100x72mm)
Computer
CPUIntel® Celeron® processor J1900/N2807 (Bay Trail SoC)
System Memory1x204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer255 levels, 1~255 sec.
Display
Display InterfaceLVDS/VGA
I/o interfaces
Serial Ports2 x RS-232/422/485 selectable
USB4 x USB 2.0
Ethernet1 port 10/100/1000 Mbps with Wake-on-LAN, PXE Boot ROM with Intel® i211AT
AudioHD Codec audio (MIC-in/Line-out) with Realtek ALC662
SMBusSystem Management Bus
Storage
SATA1 x SATA-300
Expansion
Expansion Interface1x full-size PCI Express Mini Card slot with mSATA supported
Power
Power InputDC power jack connector +12V DC-in only
Auto Power OnSupported
Power Requirements (J1900@8GB DDR3L)Max. RMS +12V @ 0.9A
Power Requirements (N2807@8GB DDR3L)Max. RMS +12V @ 0.7A
BatteryLithium 3V/220mAH
Physical
Size100x72mm
Board Thickness1.6mm
Form FactorPico-ITX
Environmental
Operating Temperature-20°C to +70°C (-4°F to +158°F)
Relative Humidity10%~95% non-condensing
Certifications
TPMST ST33TPM12LPC with TPM 1.2 compliant
