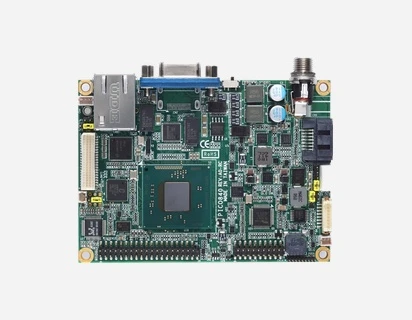

PICO840
Pico-ITX SBC with Intel Atom E3845/E3827, LVDS/ VGA (HDMI), LAN and Audio
Features
- Intel Atom® processor E3845/E3827 (Bay Trail SoC)
- 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
- 4 USB 2.0 ports
- 2 COM ports (RS-232/422/485 selectable)
- PCI Express Mini Card slot with mSATA supported
- LVDS/VGA (HDMI) display interfaces
- LAN connectivity
- Audio support
- Watchdog Timer with 255 levels, 1~255 sec.
- Lithium 3V/220mAH battery
- AT Auto power on function supported
Computer
CPUIntel Atom® processor E3845 quad core or E3827 dual core onboard (Bay Trail)
System Memory1x204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer255 levels, 1~255 sec.
Display
ChipsetIntel® HD Graphics
Memory SizeShare system memory
Display Interface1xVGA or 1xHDMI, 1xLVDS; 18/24-bit single/dual channel
I/o interfaces
USB4 USB 2.0 ports
COM Ports2 COM ports (RS-232/422/485 selectable)
Storage
SSDN/A
Expansion
Expansion Interface1x full-size PCI Express Mini Card slot with mSATA
Power
Power InputDC power jack connector, +12V DC-in only
Power Requirements (E3845@1.91GHz, 8GB DDR3L)+12V@1.33A Max. RMS
Power Requirements (E3827@1.75GHz, 8GB DDR3L)+12V@1.2A Max. RMS
BatteryLithium 3V/220mAH
AT Auto power on functionSupported
Physical
Size100x72mm
Board Thickness1.6mm
Form FactorPico-ITX
Environmental
Operating Temperature-40℃ to +70℃ (-40°F to +158°F)
Relative Humidity10% to 95% relative humidity, non-condensing
