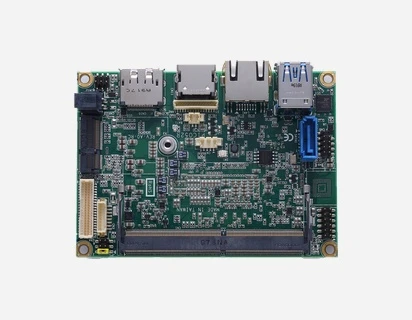

PICO52R
Pico-ITX SBC with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, DisplayPort++, HDMI, LVDS, and 2 GbE LAN
Features
- 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor
- 1 DDR4 SO-DIMM for up to 32GB of memory
- 2 USB 2.0 and 2 USB 3.2 Gen1
- 2 GbE LAN
- Supports Intel® AMT 11
- M.2 Key E
- DisplayPort++, HDMI, and LVDS display interfaces
- 1x SATA-3
- 2x RS-232/422/485 serial ports
- 4-channel programmable digital I/O
- Hardware monitoring for CPU/system temperature, voltage, and fan speed
- Wake-on-LAN and PXE Boot ROM support
- 64GB/128GB eMMC optional storage
Computer
Processor8th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard
System Memory1x 260-pin DDR4-2400 SO-DIMM, up to 32GB
BIOSAMI
Watchdog Timer65536 levels, 0 to 65535 seconds
Display
GPUIntel® HD Graphics
Memory SizeShared system memory
Display Interface1x DisplayPort++, 1x HDMI 1.4, 1x LVDS (18/24-bit single/dual channel)
I/o interfaces
USB2x USB 2.0, 2x USB 3.2 Gen1
Ethernet2x 10/100/1000 Mbps (Intel® I219-LM and Intel® I210-AT)
Serial2x RS-232/422/485
Digital I/O4-channel in/out programmable
SMBusYes, compatible with iC
Storage
SATA1x SATA-3
eMMC64GB/128GB optional
Power
Power Input2x 2-pin +12VDC-in connectors with AT auto power on
Power RequirementsCore i7-8665UE min. +12V @ 2.9A, Core i5-8365UE min. +12V @ 2.7A, Core i3-8145UE min. +12V @ 2.3A, Celeron 4305UE min. +12V @ 2.0A
BatteryLithium 3V/220mAh
Physical
Dimensions100 x 72 mm
Board Thickness1.6 mm
Form FactorPico-ITX
Environmental
Operating Temperature-20°C to +60°C (-4°F to 140°F)
Humidity10% to 95% relative humidity, non-condensing
