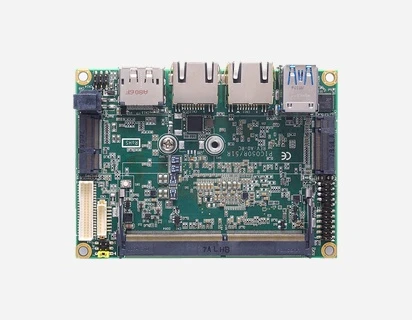

PICO51R
Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort++, LVDS and 2 GbE LAN
Features
- 7th generation Intel® Core™ i7/i5/i3 and Celeron® processor
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 2 GbE LAN
- M.2 Key E
- M.2 Key B
- Intel® AMT 11 supported
- DisplayPort++
- LVDS display interface
- Watchdog Timer with 65536 levels
- Hardware Monitoring (CPU/system temperature, voltage, fan speed)
- Wake-on-LAN and PXE Boot ROM support
- 4-channel programmable Digital I/O
- SMBus compatible with I2C
Computer
CPU7th generation Intel® Core™ i7/i5/i3 and Celeron® processor onboard
ChipsetSoC integrated
System Memory1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOSAMI
Watchdog Timer65536 levels, 0 to 65535 sec.
Storage
SSD1 x M.2 Key B 2242 (SATA, USB 2.0, optional PCIe x2)
Expansion
Expansion Interface1 x M.2 Key E 2230 (PCIe x1, USB 2.0)
BatteryLithium 3V/220 mAh
Power
Power Input2x 2-pin connector +12V DC-in only, AT Auto Power On function supported
Power Requirements (Intel® Core™ i7-7600U@2.8GHz 8GB DDR4)min. RMS +12V@3.2A
Power Requirements (Intel® Core™ i5-7300U@2.6GHz 8GB DDR4)min. RMS +12V@2.6A
Power Requirements (Intel® Core™ i3-7100U@2.4GHz 8GB DDR4)min. RMS +12V@2.3A
Power Requirements (Intel® Celeron® 3965U@2.2GHz 8GB DDR4)max. RMS +12V@1.6A
Display
ChipsetIntel® HD Graphics
Memory SizeShare system memory
Display Interface1x DisplayPort++
Display Interface1x LVDS; 18/24-bit single/dual channel
I/o interfaces
Ethernet1x 10/100/1000Mbps Ethernet with Intel® I219-LM; supports Wake-on-LAN, PXE Boot ROM
Ethernet1x 10/100/1000Mbps Ethernet with Intel® I210-AT; supports Wake-on-LAN, PXE Boot ROM
USB2x USB 2.0
USB2x USB 3.0
Serial2x RS-232/422/485
SMBusYes; compatible with I2C
Digital I/O4-channel in/out programmable
AudioRefer to ordering information
SATARefer to ordering information
Hardware MonitoringDetect CPU/system temperature, voltage and fan speed
TPMN/A
Physical
Dimensions100x72mm
Board Thickness1.6mm
Environmental
Operating Temperature-20℃ to +60℃ (-4°F to 140°F)
Humidity10% to 95% relative humidity, non-condensing
