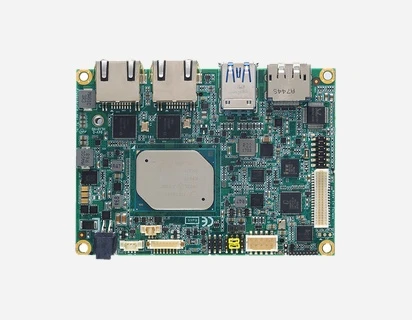

PICO319
Pico-ITX SBC with Intel Atom® x5-E3940 Processor, DisplayPort++, LVDS, 2 GbE LAN, and Audio
Features
- Intel Atom® x5-E3940 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 1 PCI Express Mini Card slot with mSATA supported
- M.2 Key B storage support
- DisplayPort++ display interface
- LVDS display interface (18/24-bit single/dual channel)
- 2x 10/100/1000Mbps Gigabit Ethernet with Wake-on-LAN and PXE Boot ROM
- HD Codec audio (MIC-in/Line-in/Line-out) with Realtek ALC888S
- 2x USB 2.0 ports
- 2x USB 3.0 ports
- 1x RS-232/422/485 serial port
- 1x RS-232 serial port
- 4-channel Digital I/O (programmable in/out)
- SMBus/I2C compatible
- Hardware monitoring (CPU/system temperature and voltage detection)
- Watchdog Timer (65536 levels, 1 to 65535 seconds)
- Lithium battery (3V/220mAh)
- Pico-ITX form factor (100x72mm)
Computer
ProcessorIntel Atom® x5-E3940 onboard (1.6-1.8GHz, 2MB cache, 9.5W)
System Memory1x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer65536 levels, 1 to 65535 seconds
BatteryLithium 3V/220mAh
Display
Graphics ChipsetIntel® integrated Gfx graphic engine
Memory SizeShared system memory
Display Interface1x DisplayPort++
Display Interface1x LVDS (18/24-bit single/dual channel)
Storage
SSD1x M.2 Key B 2242/3042 (SATA/USB2.0/USB3.0/PCIe x2 optional)
SSD1x mSATA (optional)
SATAN/A
I/o interfaces
Ethernet2x 10/100/1000Mbps Ethernet with Intel® I210-AT supporting Wake-on-LAN, PXE Boot ROM
AudioHD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888S
USB2x USB 2.0
USB2x USB 3.0
Serial1x RS-232/422/485
Serial1x RS-232
SMBusYes; compatible with I2C
Digital I/O4-channel in/out programmed
Hardware MonitoringDetect CPU/system temperature and voltage
Expansion
Expansion Interface1x Half-size PCI Express Mini Card slot
Power
Power Input2x 2-pin +12VDC-in connectors with AT auto power on
Power RequirementsIntel Atom® x5-E3940 @ 1.6GHz 8GB DDR3L, min. RMS: +12V @ 1.3A
Physical
Dimensions100 x 72mm
Board Thickness1.6mm
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F)
Humidity10% to 95% relative humidity, non-condensing
Computer
ProcessorIntel Atom® x5-E3940 onboard (1.6-1.8GHz, 2MB cache, 9.5W)
System Memory1x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer65536 levels, 1 to 65535 seconds
BatteryLithium 3V/220mAh
Display
Graphics ChipsetIntel® integrated Gfx graphic engine
Memory SizeShared system memory
Display Interface1x DisplayPort++
Display Interface1x LVDS (18/24-bit single/dual channel)
Storage
SSD1x M.2 Key B 2242/3042 (SATA/USB2.0/USB3.0/PCIe x2 optional)
SSD1x mSATA (optional)
SATAN/A
I/o interfaces
Ethernet2x 10/100/1000Mbps Ethernet with Intel® I210-AT supporting Wake-on-LAN, PXE Boot ROM
AudioHD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888S
USB2x USB 2.0
USB2x USB 3.0
Serial1x RS-232/422/485
Serial1x RS-232
SMBusYes; compatible with I2C
Digital I/O4-channel in/out programmed
Hardware MonitoringDetect CPU/system temperature and voltage
Expansion
Expansion Interface1x Half-size PCI Express Mini Card slot
Power
Power Input2x 2-pin +12VDC-in connectors with AT auto power on
Power RequirementsIntel Atom® x5-E3940 @ 1.6GHz 8GB DDR3L, min. RMS: +12V @ 1.3A
Physical
Dimensions100 x 72mm
Board Thickness1.6mm
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F)
Humidity10% to 95% relative humidity, non-condensing
