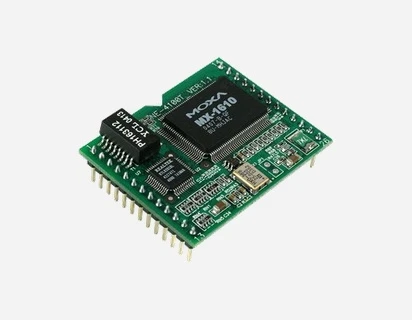

NE-4100 Series
10/100 Mbps embedded serial device servers
Features
- 10/100 Mbps Ethernet interface
- Supports baudrates up to 230.4 kbps
- Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
- Supports DHCP, BootP, Static IP, and ARP
- SNMP and email alerts for event trapping and notifications
- Half the size of a credit card—only 57 × 40 mm
- Low power consumption at 1.5 W, with single +5 V input
- Magnetic isolation protection (1.5 kV built-in)
- IEEE 802.3 10BaseT and IEEE 802.3u 100BaseT(X) standards
- IEEE 802.3x flow control support
- Web Console (HTTP), Windows Utility, Telnet Console, and Serial Console configuration options
- Windows Real COM Drivers support for multiple Windows versions
- Linux Real TTY Drivers support (Kernel 2.4.x through 5.x)
- Fixed TTY Drivers for SCO UNIX, UnixWare, QNX, Solaris, FreeBSD, AIX, HP-UX, Mac OS X
- Android API support (3.1.x and later)
- Configurable DIO channels (4 channels by software)
- RoHS, CRoHS, and WEEE compliant
Moxa's NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa's embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.
Moxa's NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa's embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.
