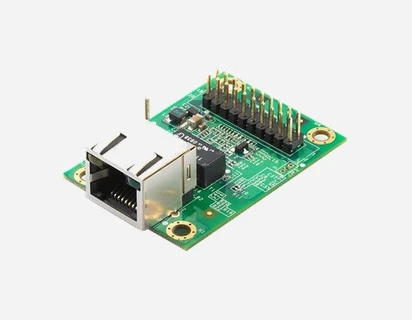

MiiNePort E3 Series
10/100 Mbps embedded drop-in module serial device servers with PoE pass-through support
Features
- Use Moxa's high-quality and reliable second-generation MiiNe SoC
- Variety of operation modes fulfill specific application requirements
- Green design with extremely low power consumption
- MiiNePort NetEZ technology makes integration incredibly easy
- Highly compact embedded device module
- 10/100 Mbps Ethernet connectivity
- PoE pass-through support
- Up to 921.6 kbps serial baudrate (E3-H Series)
- Multiple operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Ethernet Modem
- Arm core processor
- Advanced UART technology
- 2 MB Flash and 4 MB SDRAM memory
- 4 configurable DIO channels
- 1.5 kV magnetic isolation protection
- RJ45 connector for easy integration
- Low power consumption (157 mA @ 3.3 VDC)
- Wide temperature range options available
- 5-year warranty
- MTBF: 5,696,350 hours
Moxa's MiiNePort E3 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E3 is empowered by the MiiNe, Moxa's second-generation SoC, which supports 10/100 Mbps Ethernet, up to 921.6 kbps serial baudrate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa's innovative NetEZ technology, the MiiNePort E3 can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. In addition, the MiiNePort E3 is a compact embedded device server with an RJ45 connector, making it easy to fit into virtually any existing serial device.
