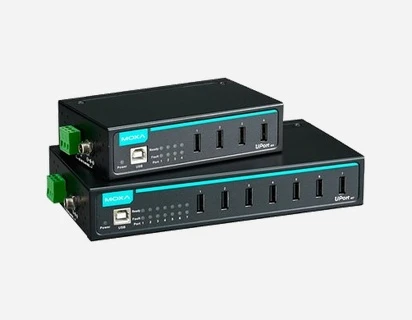

UPort 404/407 Series
4 and 7-port industrial-grade USB 2.0 hubs
Features
- Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
- USB-IF certification
- Dual power inputs (power jack and terminal block)
- 15 kV ESD Level 4 protection for all USB ports
- Rugged metal housing
- DIN-rail and wall-mountable
- Comprehensive diagnostic LEDs
- Chooses bus power or external power (UPort 404)
- USB plug-and-play spec compliant
- Full 500 mA of power per port
- Support 12-40 VDC power for mobile applications
The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs' support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
