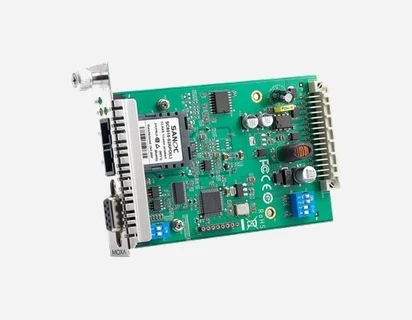

TCF-142-RM Series
RS-232/422/485 to fiber slide-in modules for the NRack System™
Features
- Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode
- 1 or 150 kilo-ohm adjustable pull high/low resistor
- Supports ring and point-to-point transmission
- Automatic baudrate detection
- Works with TRC-190 chassis
- Converts RS-232, RS-422, or RS-485 signal to fiber-optic signal
- ADDC® (automatic data direction control) for RS-485
- Overload current protection supported
The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal. The TCF-142-RM Series can automatically detect the serial baudrate. This is an extremely convenient feature. Even if a device's baudrate is changed, the signal will still be transmitted through the media converter without any problem.
