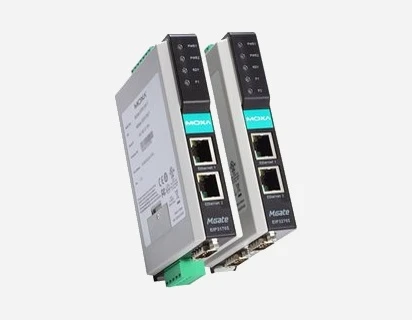

MGate EIP3170/EIP3270 Series
1 and 2-port EtherNet/IP-to-DF1 gateways
Features
- PCCC objects for Rockwell Automation networks supported
- Use ProCOM to implement control via COM port mapping
- 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
- EtherNet/IP and DF1 traffic monitor for easy troubleshooting
- Redundant dual DC power inputs
- Built-in Ethernet cascading for easy wiring
- -40 to 75°C wide operating temperature models available
- Support for up to 16 EtherNet/IP clients and servers simultaneously
- Windows utility with multi-language support for configuration and traffic monitoring
- Serial redirector function maintains original master/slave connections
- Virtual serial ports for remote PC via ProCOM and Real COM driver
- Support for up to four virtual COM port connections
- DIP switches for termination and pull high/low resistor selection
- Built-in optical isolation for noise protection
MGate™ EIP3000 gateways provide Ethernet/IP-to-DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With a number of innovative functions, the MGate™ Series overcomes the difficulties of connecting between legacy serial devices and SCADA software. Both 1 and 2-port gateways are available for use with different-sized control networks.
