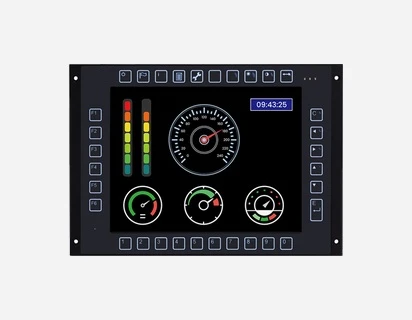

GOT710S
EN50155 S3 10.4" SVGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor E3845 1.91 GHz (-40°C to +70°C)
Features
- Sunlight readable 10.4" SVGA TFT LCD with 1000 nits of high brightness
- Intel Atom® processor E3845 1.91 GHz
- Alternative keypad control in the front bezel
- M12-type lockable connectors design
- Auto-dimming for different environments
- Operating temperature ranges from -40°C to +70°C
- Typical 24 to 110 VDC wide power input range, EN 50155 Class S3 20 ms power interruption protection
- EN 50155, EN 45545-2 certified for railway application
- Fanless operation
- IP65-rated front bezel
- VESA mount and wall mount support
Computer
ProcessorIntel Atom® E3845 1.91 GHz (Bay Trail)
ChipsetSoC integrated
System MemoryDDR3L 4GB onboard
BIOSAMI
Onboard GraphicsIntegrated Intel® GFX
Watchdog Timer255 levels, 1 to 255 seconds
Display
Display Type10.4" SVGA TFT LCD
Resolution800 x 600
Brightness1000 nits (cd/m²)
Viewing Angle (H/V)160°/160°
Touchscreen5-wire resistive touchscreen with or without keyboard
Front BezelIP65-rated aluminum front bezel, IP40-rated rear protection
I/o interfaces
Serial2 x isolated M12 A-coded RS-232/422/485 (isolation 1.5 kV)
Ethernet2 x isolated M12 X-coded GbE (isolation 1.5 kV)
USB1 x M12 A-coded USB 2.0 (2 port signal)
Audio1 x DB15 audio line-in, mic-in, speaker-out or line-out
DIO1 x isolated terminal block DIO (6-in/2-out, isolation 1.5 kV)
CAN Bus1 x isolated DB9 CAN bus (isolation 1.5 kV)
Power Input1 x M12 A-coded DC-in
Storage
Storage1 x mSATA
Expansion
Expansion Interface2 x PCI Express Mini Card slot (slot 2 for mSATA use only)
Power
Power InputTypical 24 to 110 VDC
Power Consumption24 to 110 VDC, 1.4 to 0.29 A
Power ProtectionEN 50155 Class S3 20 ms power interruption protection
Physical
Dimensions (W x D x H)310 x 61.5 x 214 mm (12.20" x 2.42" x 8.43")
Weight (net/gross)2.6 kg (5.73 lbs) / 4.4 kg (9.7 lbs)
Packing Dimensions (W x D x H)392 x 195 x 447 mm (15.43" x 7.68" x 17.6")
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F)
Relative Humidity10% to 95% @ +40°C, non-condensing
