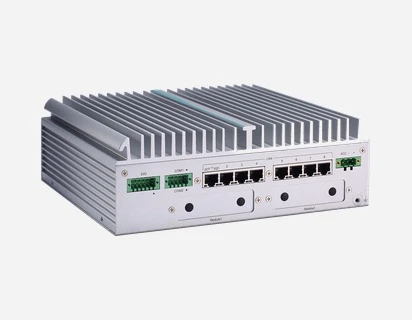

UST510-52B-FL
E-Mark Fanless Embedded System with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® Processor for Vehicle PC
Features
- CE, FCC and E-Mark certified
- LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel® C246
- Fanless and Wide operating temperatures from -40°C to +70°C
- Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
- Supports M.2 Key B and M.2 Key E for wireless communication module
- Intelligent solution of vehicle power management (Smart Ignition)
- Convenient swappable HDD/SSD slots and flexible I/O windows
Computer
ProcessorLGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (CPU TDP max. up to 65W)
ChipsetIntel® C246
System Memory2 x 260-pin DDR4-2666 MHz ECC/non-ECC SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
Display
VGA1 x VGA (supports up to 1920 x 1200 @60Hz)
HDMI2 x HDMI (supports up to 4K/2K @30Hz)
I/o interfaces
Serial1 x terminal block RS-232/422/485 (4-wire)
Audio1 x Mic-in, 1 x Line-out
USB4 x USB 3.0
DIO1 x Terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
Antenna openings4 x Antenna opening
SIM Card Sockets2 x External accessible SIM card socket
Ethernet
Option 11 x Non-PoE RJ-45 GbE LAN + 8 x PoE RJ-45 GbE LAN with 2 SATA (Intel® I210-AT)
Option 21 x Non-PoE RJ-45 GbE LAN + 8 x PoE M12 A-code GbE LAN with 4 SATA (Intel® I210-AT)
Option 31 x Non-PoE RJ-45 GbE LAN + 16 x PoE RJ-45 GbE LAN with 4 SATA (Intel® I210-AT)
Storage
SATA Drive Option 12 x 2.5" 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported
SATA Drive Option 24 x 2.5" 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1/5/10 supported
Watchdog Timer255 levels, 1 to 255 sec.
Power
Power Supply1 x Terminal block, 12 and 24V DC with smart ignition
PoE PerformanceUp to 8 x RJ-45 & 8 x M12/ 16 x RJ-45 PoE output max. 90W supports PoE & PoE+
PoE (802.3af)15.4W/port
PoE+ (802.3at)30W/port
Power ProtectionOCP, OVP, UVP, RPP, ISO 7637-2 pulse 1, 2a, 2b, 3a, 3b, 4
System Indicators1 x LED indicator for SATA drive activity, 1 x LED indicator for power, 2 x Programmable
Physical
ColorSilver
ConstructionAluminum extrusion and heavy-duty steel, supports up to IP40
Dimensions (8RJ 2SATA)240 x 210.5 x 82.2 mm (9.45" x 8.29" x 3.24")
Dimensions (8M12 4SATA)240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Dimensions (16RJ 4SATA)240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Weight (8RJ 2SATA net/gross)4.16 kg (9.17 lb) / 4.82 kg (10.62 lb)
Weight (8M12 4SATA net/gross)4.81 kg (10.604 lb) / 6.06 kg (13.36 lb)
Weight (16RJ 4SATA net/gross)4.796 kg (10.57 lb) / 6.05 kg (13.33 lb)
MountingWall mount
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Humidity10% to 95%, non-condensing
Vibration Endurance (SSD)3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
Vibration Endurance (HDD)0.8 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
Vibration Endurance (HDD with kit)2.5 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
MIL-STD-810GMethod 514.6C-VI Category 4 compliant
Certifications
EMC CE/FCCEN 55032 (Class A), EN 55035, FCC part 15 B (Class A)
E-MarkECE-R10
Operating System SupportWin 10/11 64-bit, Linux
Computer
ProcessorLGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (CPU TDP max. up to 65W)
ChipsetIntel® C246
System Memory2 x 260-pin DDR4-2666 MHz ECC/non-ECC SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
Display
VGA1 x VGA (supports up to 1920 x 1200 @60Hz)
HDMI2 x HDMI (supports up to 4K/2K @30Hz)
I/o interfaces
Serial1 x terminal block RS-232/422/485 (4-wire)
Audio1 x Mic-in, 1 x Line-out
USB4 x USB 3.0
DIO1 x Terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
Antenna openings4 x Antenna opening
SIM Card Sockets2 x External accessible SIM card socket
Ethernet
Option 11 x Non-PoE RJ-45 GbE LAN + 8 x PoE RJ-45 GbE LAN with 2 SATA (Intel® I210-AT)
Option 21 x Non-PoE RJ-45 GbE LAN + 8 x PoE M12 A-code GbE LAN with 4 SATA (Intel® I210-AT)
Option 31 x Non-PoE RJ-45 GbE LAN + 16 x PoE RJ-45 GbE LAN with 4 SATA (Intel® I210-AT)
Storage
SATA Drive Option 12 x 2.5" 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported
SATA Drive Option 24 x 2.5" 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1/5/10 supported
Watchdog Timer255 levels, 1 to 255 sec.
Power
Power Supply1 x Terminal block, 12 and 24V DC with smart ignition
PoE PerformanceUp to 8 x RJ-45 & 8 x M12/ 16 x RJ-45 PoE output max. 90W supports PoE & PoE+
PoE (802.3af)15.4W/port
PoE+ (802.3at)30W/port
Power ProtectionOCP, OVP, UVP, RPP, ISO 7637-2 pulse 1, 2a, 2b, 3a, 3b, 4
System Indicators1 x LED indicator for SATA drive activity, 1 x LED indicator for power, 2 x Programmable
Physical
ColorSilver
ConstructionAluminum extrusion and heavy-duty steel, supports up to IP40
Dimensions (8RJ 2SATA)240 x 210.5 x 82.2 mm (9.45" x 8.29" x 3.24")
Dimensions (8M12 4SATA)240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Dimensions (16RJ 4SATA)240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Weight (8RJ 2SATA net/gross)4.16 kg (9.17 lb) / 4.82 kg (10.62 lb)
Weight (8M12 4SATA net/gross)4.81 kg (10.604 lb) / 6.06 kg (13.36 lb)
Weight (16RJ 4SATA net/gross)4.796 kg (10.57 lb) / 6.05 kg (13.33 lb)
MountingWall mount
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Humidity10% to 95%, non-condensing
Vibration Endurance (SSD)3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
Vibration Endurance (HDD)0.8 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
Vibration Endurance (HDD with kit)2.5 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
MIL-STD-810GMethod 514.6C-VI Category 4 compliant
Certifications
EMC CE/FCCEN 55032 (Class A), EN 55035, FCC part 15 B (Class A)
E-MarkECE-R10
Operating System SupportWin 10/11 64-bit, Linux
