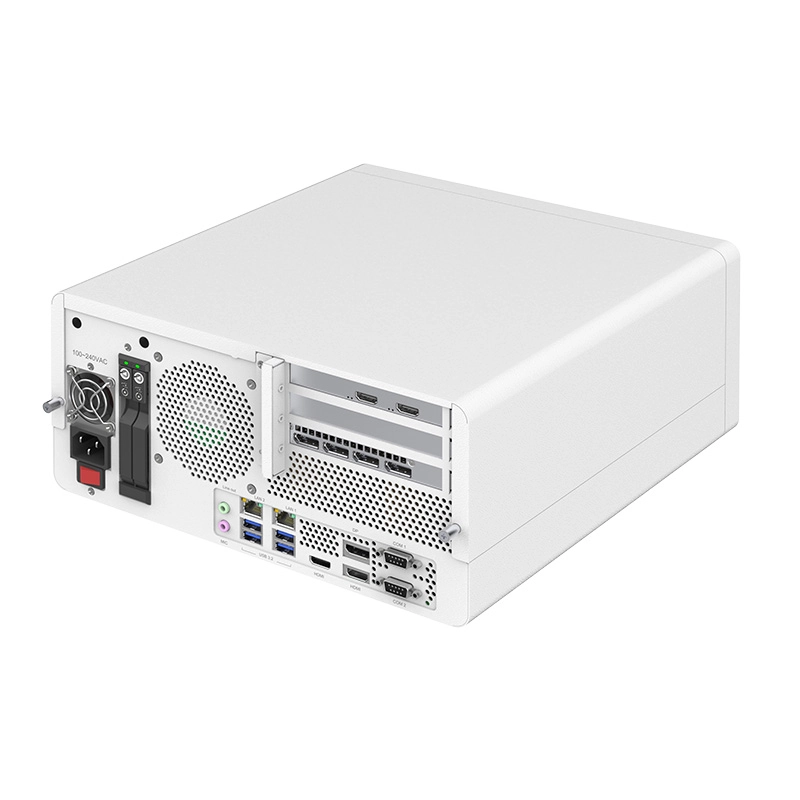

mBOX600
Medical Grade System with 9th/8th Gen Intel® Core™ i7/i5 Processor for Smart Healthcare Applications
Features
- 9th/8th gen Intel® Core™ i7/i5 processor, TDP 45W
- 2 DDR4-2666 SO-DIMM for up to 64GB memory
- Supports 4K UHD resolution through 1 HDMI port and 2 DisplayPort++
- 2 COM and 2 GbE LAN with isolation supported
- Supports half-size PCIe x16 slot
- Swappable 2.5" SATA III SSD tray with a security lock
- Antimicrobial coating chassis (optional)
Computer
Processor9th/8th gen Intel® Core™ i7/i5 processor (Coffee Lake), TDP 45W
ChipsetIntel® QM370
System Memory2 x 260-pin DDR4-2666 non-ECC SO-DIMM, up to 64GB
GraphicsIntel® UHD Graphics 630
TPMTPM 2.0
BIOSAMI uEFI
Watchdog Timer65535 levels, 1 to 65535 sec
Display
HDMI1 x HDMI 1.4 (4096 x 2160 @30Hz)
DisplayPort2 x DisplayPort 1.2 (4096 x 2304 @60Hz)
I/o interfaces
Serial2 x RS-232/422/485 with isolation supported
Ethernet2 x 10/100/1000 Mbps, supporting Intel® I210-IT, Intel® I219-LM, and Intel® AMT
USB4 x USB 3.1 Gen2
Audio1 x Line-out, 1 x Mic-in
Antenna2 x SMA-type antenna connector
Power Button1 x Power on/off button
System Indicator1 x Blue LED for system power-on
Storage
Primary Storage1 x 2.5" SATA III SSD/HDD
Secondary Storage1 x M.2 Key M 2280 NVMe SSD slot
Expansion
Mini Card Slot1 x full-size PCI Express Mini Card slot (USB + PCIe signal)
PCIe Slot1 x half-size PCI Express x16 Gen3 slot
Power
Input24 VDC power supply
Power Adapter24V/6.25A, 150W adapter (medical grade)
Physical
ColorWhite
Dimensions250 x 240 x 90 mm (9.84" x 9.45" x 3.54")
Weight4 kg net / 8.82 lb gross
Environmental
Operating Temperature0°C to +40°C (+32°F to +104°F)
Relative Humidity10% to 90%, non-condensing
Vibration Endurance3 Grms STD, random, 5 to 500 Hz, 1 hr/axis
Certifications
Safety & EMCCE, FCC Part 18
Medical StandardsEN 60601-1: 2006 + A1: 2013 + A12: 2014
Medical StandardsBS EN 60601-1: 2006 + A1: 2013 + A12: 2014
EMC StandardsEN 60601-1-2:2015 + A1:2021
EMC StandardsBS EN 60601-1-2:2015 + A1:2021
Risk ManagementISO 14971:2019
Operating SystemsWin 10, Linux
