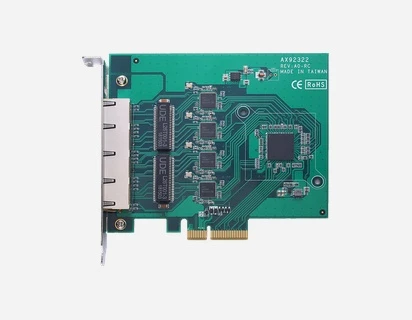

AX92322
2-port/4-port GigE PCI Express Card
Features
- 2 or 4 independent Intel® Ethernet Controller i210-AT
- Supports 9.5KB Jumbo Frame and IEEE 1588
- Supports two or four GbE LAN ports
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
General
HOST BUS4-lane Gen2 PCIe interface, compliant with PCI Express base specification, revision 2.0
CHANNELS2/4 ports
ETHERNET CHIP2 or 4 x Intel® Ethernet Controller i210-AT
DATA TRANSFER RATE10/100/1000 Mbps
BUS TYPEPCI Express x4
POWER CONSUMPTIONPower from PCIe slot, 1.73A@+3.3V max.
PHYSICALDimensions 125 x 111 mm
I/O CONNECTORRJ-45
ENVIRONMENTALOperating temperature 0°C to +70°C (+32°F to +158°F), Storage temperature -20°C to +80°C (-4°F to +176°F), Operating Humidity 10 - 95% RH, non-condensing
OPERATING SYSTEMWindows® 7/10 (32/64-bit), Linux
CERTIFICATIONSCE
