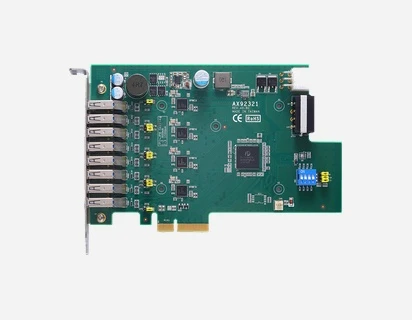

AX92321
4-port/8-port USB 3.0 PCI Express Card with 4 Independent Host Controllers
Features
- 4 or 8 USB 3.0 ports
- 4 independent USB 3.0 host controllers
- 900 mA/1500 mA max. per port configurable via jumper settings
- Compliant with USB 3.0 Rev.1.0 and Intel® xHCI Rev.1.0
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
- Supports Windows® 7/10 and Ubuntu 20.04 LTS
- Supports power on/off for each port via software settings
General
USB Channels4 x USB 3.0 type A connector (AX92321-4U) or 8 x USB 3.0 type A connector (AX92321-8U)
USB Controller4 x Renesas μPD720202 host controllers
USB ComplianceUSB 3.0 specification and Intel® xHCI specification, revision 1.0
USB Max. Current900/1500 mA maximum per port configurable via jumper settings
USB Data Transfer RateSuper speed (5.0 Gbps)/high speed (480.0 Mbps)/full speed (12.0 Mbps)/low speed (1.5 Mbps)
I/o interfaces
Bus TypePCI Express x4 Gen2
Power
Power from PCIe slot2.1A @ +12V, 0.8A @ +3.3V (total power max. 20W USB power output)
Power from ATX connector5A @ +12V or 2.5A @ +24V, 0.8A @ +3.3V (from PCIe slot)
Power from 4P Molex connector5A @ +12V, 0.8A @ +3.3V (from PCIe slot)
Power Connectors4-pin Molex connector, 6-pin ATX power connector
Physical
Dimensions168 mm (6.6") x 107 mm (4.2")
Environmental
Operating Temperature0°C to +70°C (+32°F to +158°F)
Storage Temperature-20°C to +80°C (-4°F to +176°F)
Operating Humidity10 - 95% RH, non-condensing
Software
Supported OSWindows® 7/10 (32/64-bit), Ubuntu 20.04 LTS
Power ManagementEach port's power on/off is controlled by software
