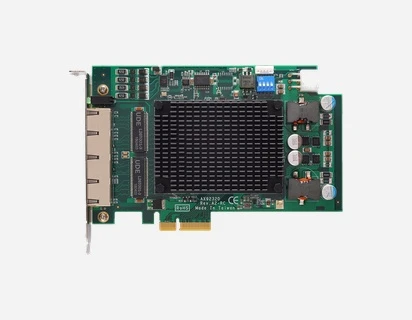

AX92320
2/4-port PCI Express GigE Frame Grabber Card
Features
- PCI Express x4 compliant
- 2 or 4 independent Gigabit PoE ports
- Supports 9.5KB jumbo frames and IEEE 1588
- Compliant with IEEE802.3at to deliver 30W at 54 VDC per port
- Up to 20/120W PoE power through PCIe 6-pin ATX power connector
- 0°C to +60°C operating temperature range
- PoE power management software
- Supports smart on/off for LAN ports
Ethernet communications
Ethernet Port2 or 4 GbE LANs supported by Intel I210-AT controller
Frame Support9.5KB jumbo frames and IEEE 1588
PoE CapabilityIEEE 802.3at compliant, up to 30W at 54 VDC per port
Speed10/100/1000 Mbps
Port Connector8-pin RJ-45
Expansion
Bus TypePCI Express x4
Power
Input Voltage12/24 VDC
Connection6-pin ATX power connector
Output PoE PowerUp to 20W with PCIe slot; Up to 120W with 6-pin ATX power connector
Power from PCIe slot2.1A @ +12V, 1.2A @ +3.3V
Power from ATX connector12A @ +12V or 6A @ +24V, 1.2A @ +3.3V (from PCIe slot)
Overload ProtectionYes
Physical
Dimensions168 x 111 mm (W x D)
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F) with air flow
Storage Temperature-20°C to +80°C (-4°F to +176°F)
Humidity10% to 95%, non-condensing
Certifications
Operating System SupportWindows 7/10 (32/64-bit)
Ethernet communications
Ethernet Port2 or 4 GbE LANs supported by Intel I210-AT controller
Frame Support9.5KB jumbo frames and IEEE 1588
PoE CapabilityIEEE 802.3at compliant, up to 30W at 54 VDC per port
Speed10/100/1000 Mbps
Port Connector8-pin RJ-45
Expansion
Bus TypePCI Express x4
Power
Input Voltage12/24 VDC
Connection6-pin ATX power connector
Output PoE PowerUp to 20W with PCIe slot; Up to 120W with 6-pin ATX power connector
Power from PCIe slot2.1A @ +12V, 1.2A @ +3.3V
Power from ATX connector12A @ +12V or 6A @ +24V, 1.2A @ +3.3V (from PCIe slot)
Overload ProtectionYes
Physical
Dimensions168 x 111 mm (W x D)
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F) with air flow
Storage Temperature-20°C to +80°C (-4°F to +176°F)
Humidity10% to 95%, non-condensing
Certifications
Operating System SupportWindows 7/10 (32/64-bit)
