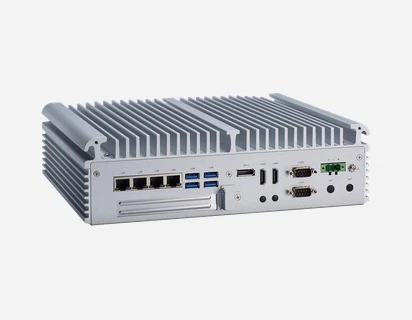

eBOX710A
Fanless Embedded System with LGA1200 Socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® H420E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC
Features
- 11th/10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® (Comet Lake-S) up to 65W processor
- 4 GbE LAN and 4 COM ports
- Dual 2.5" SATA HDD drive bays
- 2 HDMI and 1 DisplayPort with dual-view supported
- -40°C to +70°C wide operating temperatures
- Wide range power input from 9 to 48 VDC
- 1 PCIe x4 slot for I/O card
- Flexible I/O Window supported via mPCIe modules
- Fanless IP40 design
- DDR4 memory up to 64GB
- TPM 2.0
Computer
CPULGA1200 socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
ChipsetIntel® H420E
System Memory2 x 260-pin DDR4-2933 non-ECC SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
Watchdog Timer255 levels, 1 to 255 sec.
Display
Video Outputs2 x HDMI 1.4b (lockable), 1 x DisplayPort 1.2 ++
I/o interfaces
USB2 x USB 3.2 Gen 1 (front), 3 x USB 3.2 Gen 1 (rear), 1 x USB 2.0 (rear)
LAN4 x GbE (3 x Intel® I210-IT, 1 x Intel® I219-LM)
Serial2 x RS-232 (front), 2 x RS-232/422/485 (rear)
SIM Slot1 x SIM slot with cover (for M.2 Key B)
Other1 x power button, 1 x AT/ATX quick switch, 1 x remote switch, 1 x reset switch connector, 1 x front access, 3 x antenna opening (front), 2 x antenna opening (rear)
Storage
Drive Bays2 x 2.5" SATA HDD/SSD (up to 15 mm height)
mSATA2 x mSATA (enabled in BIOS setting)
Expansion
PCIe1 x PCIe x4 slot
mPCIe2 x full-size PCI-Express Mini Card slot (USB + PCIe + SATA signal)
M.21 x M.2 Key B 3050 slot (for 5G; USB signal)
Power
Input9 to 48 VDC
ProtectionOVP, UVP, OCP, SCP, Reverse protection
Physical
ColorSilver
ConstructionAluminum extrusion and heavy-duty steel, IP40
Dimensions280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight4.9 kg (10.8 lb) net / 7 kg (15.43 lb) gross
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F) with 0.7 m/s airflow (CPU TDP 35W); -40°C to +60°C (-40°F to +140°F) with 0.7 m/s airflow (CPU TDP 65W) (with W.T. DRAM & SSD)
Relative Humidity10% to 90% relative humidity, non-condensing
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Package VibrationMIL-STD-810G 514.6C-II compliance
Certifications
Operating SystemsWin 11 IoT, Linux
Computer
CPULGA1200 socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
ChipsetIntel® H420E
System Memory2 x 260-pin DDR4-2933 non-ECC SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
Watchdog Timer255 levels, 1 to 255 sec.
Display
Video Outputs2 x HDMI 1.4b (lockable), 1 x DisplayPort 1.2 ++
I/o interfaces
USB2 x USB 3.2 Gen 1 (front), 3 x USB 3.2 Gen 1 (rear), 1 x USB 2.0 (rear)
LAN4 x GbE (3 x Intel® I210-IT, 1 x Intel® I219-LM)
Serial2 x RS-232 (front), 2 x RS-232/422/485 (rear)
SIM Slot1 x SIM slot with cover (for M.2 Key B)
Other1 x power button, 1 x AT/ATX quick switch, 1 x remote switch, 1 x reset switch connector, 1 x front access, 3 x antenna opening (front), 2 x antenna opening (rear)
Storage
Drive Bays2 x 2.5" SATA HDD/SSD (up to 15 mm height)
mSATA2 x mSATA (enabled in BIOS setting)
Expansion
PCIe1 x PCIe x4 slot
mPCIe2 x full-size PCI-Express Mini Card slot (USB + PCIe + SATA signal)
M.21 x M.2 Key B 3050 slot (for 5G; USB signal)
Power
Input9 to 48 VDC
ProtectionOVP, UVP, OCP, SCP, Reverse protection
Physical
ColorSilver
ConstructionAluminum extrusion and heavy-duty steel, IP40
Dimensions280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight4.9 kg (10.8 lb) net / 7 kg (15.43 lb) gross
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F) with 0.7 m/s airflow (CPU TDP 35W); -40°C to +60°C (-40°F to +140°F) with 0.7 m/s airflow (CPU TDP 65W) (with W.T. DRAM & SSD)
Relative Humidity10% to 90% relative humidity, non-condensing
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Package VibrationMIL-STD-810G 514.6C-II compliance
Certifications
Operating SystemsWin 11 IoT, Linux
