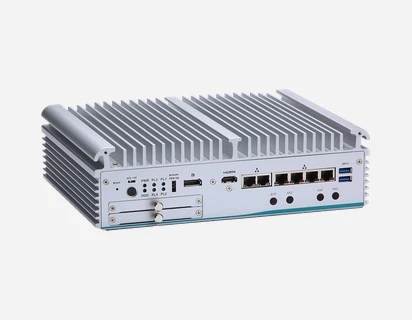

eBOX710-521-FL
Fanless Embedded System with LGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, Intel® C246, ECC/Non-ECC, and 1 PCIe x4 Slot
Features
- Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor
- 2 DDR4 ECC/non-ECC memory supported, up to 64GB
- Dual swappable 2.5" SATA HDD drive bays with RAID 0 & 1
- DVI-I, HDMI, and DisplayPort with triple-view supported
- 6 GbE LAN, 6 USB 3.1, and 1 PCIe x4 slot
- Flexible I/O window supported
- Fanless design
- IP40 construction
- TPM 2.0
- Wide temperature operating range -40°C to +70°C
Computer
CPULGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (CPU TDP max. up to 35 W)
ChipsetIntel® C246
System Memory2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
I/o interfaces
1 x flexible I/O window (default2 x DB9 half-cut bracket)
Watchdog Timer255 levels, 1 to 255 sec.
Power
Power Input24 VDC
Power Connector1 x Phoenix type VDC power input connector
Power ProtectionOVP, UVP, OCP, SCP, Reverse protection
Physical
ColorSilver
ConstructionAluminum extrusion and heavy-duty steel, IP40
Dimensions (W x D x H)280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)4.8 kg (10.58 lb) / 5.6 kg (12.34 lb)
System Indicator1 x green LED for system power-on, 1 x green LED for HDD active, 4 x green LED for programmable
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F) (with W.T. DRAM & SSD)
Relative Humidity10% to 90% relative humidity, non-condensing
ShockIEC 60068-2-27 (with SSD: 50G @ wall mount, half-sine, and 11 ms duration)
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, and 1 hr/axis)
Certifications
EOS SupportWin 10 IoT, Win 11 IoT, Linux
Software SupportAxiomtek EAPI
