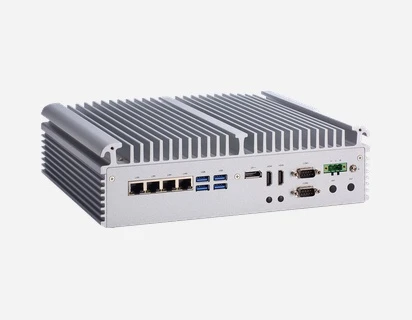

eBOX671A
Fanless Embedded System with LGA1200 Socket 11th/10th gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® W480E, 2 HDMI, DisplayPort, 6 USB, 4 LAN, and 9 to 48 VDC
Features
- LGA1200 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S)
- 4 GbE LAN with optional PoE supported
- Dual 2.5" SATA HDD drive bays with RAID 0 & 1 support
- Supports triple-view with 2 HDMI and 1 DisplayPort
- -40°C to +70°C wide range operation temperature
- Wide range power input from 9 to 48 VDC
- Flexible I/O window supported via mPCIe modules
Computer
CPULGA1200 socket 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
ChipsetIntel® W480E
System Memory2 x 260 pin DDR4-2933 ECC*/non-ECC SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
Watchdog Timer255 levels, 1 to 255 sec.
Expansion
1 x flexible I/O window (default2 x half-cut DB9 bracket)
Power
Power InputStandard 9 to 48 VDC
Power ProtectionOVP, UVP, OCP, SCP, Reverse protection
System Indicator1 x green LED for system power, 1 x orange LED for HDD activity, 4 x green LED for programmable
Physical
ConstructionAluminum extrusion and heavy-duty steel, IP40
Standard ColorSilver
Dimensions (W x D x H)280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)4.9 kg (10.8 lb)/7 kg (15.43 lb)
Environmental
Operating Temperature (Ethernet)-40°C to +70°C (CPU 35W TDP), -40°C to +60°C (CPU 65W TDP) with 0.7 m/s airflow
Operating Temperature (PoE optional)-40°C to +60°C (CPU 35W TDP), -40°C to +50°C (CPU 65W TDP) with 0.7 m/s airflow
Relative Humidity10% to 90% non-condensing
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Certifications
Operating System SupportWin 10 IoT, Win 11 IoT, Linux
