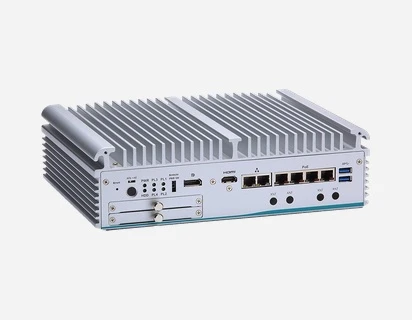

eBOX671-521-FL
Fanless Embedded System with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, 4-CH PoE, and MXM 3.1 Type A
Features
- 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor with Intel® Q370 chipset (Coffee Lake/Coffee Lake Refresh-S)
- 4-CH PoE (IEEE802.3at compliance)
- Dual swappable 2.5" SATA HDD drive bays with RAID 0 & 1
- Supports MXM 3.1 type A graphics module (optional)
- Supports triple-view with DVI-I, HDMI, and DisplayPort
- Optional Intel® C246 supports ECC memory (Intel® Core™ i3 or Celeron® processor)
- Fanless IP40 design
- DDR4 memory support up to 64GB
- TPM 2.0
- Wide temperature operation range
Computer
ProcessorLGA1151 9th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (35W)
ProcessorLGA1151 8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (35W/65W)
ChipsetIntel® Q370 or Intel® C246 PCH (optional)
System Memory2 x 260-pin DDR4-2666 SO-DIMM, up to 64GB (ECC supported by Intel® C246 PCH)
BIOSAMI
TPMTPM 2.0
Watchdog Timer255 levels, 1 to 255 sec.
Display
DVI-I1 x DVI-I
HDMI1 x HDMI
DisplayPort1 x DisplayPort + 2 x DisplayPort via optional MXM kit
I/o interfaces
Serial2 x RS-232/422/485
Ethernet4 x power over Ethernet (IEEE802.3at), up to 60W
Ethernet2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT and I219-LM)
USB2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1
Antenna4 x SMA-type antenna connector
Flexible I/O1 x flexible I/O window (default: 2 x DB9 half-cut bracket)
Power1 x Phoenix-type VDC power input connector
Control1 x AT/ATX quick switch, 1 x ATX power switch, 1 x reset switch connector, 1 x remote switch
Storage
HDD Bays2 x 2.5" HDD drive bay (up to 9.5 mm height)
mSATA1 x mSATA (enabled in BIOS setting)
RAIDRAID 0 & 1 support
Expansion
PCI Express Mini Card2 x full-size PCI Express Mini Card slot (USB + PCIe signal)
SIM Slot2 x SIM slot
MXM1 x MXM3.1 type A connector
Power
Power Input24 VDC
Power ConsumptionOVP, UVP, OCP, SCP, Reverse protection
Physical
Dimensions280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight4.8 kg (10.58 lbs) net / 5.6 kg (12.34 lbs) gross
ConstructionAluminum extrusion and heavy-duty steel, IP40
ColorSilver
System Indicator1 x green LED for system power-on, 1 x green LED for HDD activity, 4 x green LED for programmable
Environmental
Operating Temperature (without MXM)-40°C to +60°C (with 35W CPU), -40°C to +50°C (with 65W CPU)
Operating Temperature (with MXM)-40°C to +50°C (with 35W CPU)
Relative Humidity10% to 90% relative humidity, non-condensing
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
VibrationIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Certifications
Supported OSWindows 10 IoT, Windows 11 IoT, Linux
Computer
ProcessorLGA1151 9th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (35W)
ProcessorLGA1151 8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (35W/65W)
ChipsetIntel® Q370 or Intel® C246 PCH (optional)
System Memory2 x 260-pin DDR4-2666 SO-DIMM, up to 64GB (ECC supported by Intel® C246 PCH)
BIOSAMI
TPMTPM 2.0
Watchdog Timer255 levels, 1 to 255 sec.
Display
DVI-I1 x DVI-I
HDMI1 x HDMI
DisplayPort1 x DisplayPort + 2 x DisplayPort via optional MXM kit
I/o interfaces
Serial2 x RS-232/422/485
Ethernet4 x power over Ethernet (IEEE802.3at), up to 60W
Ethernet2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT and I219-LM)
USB2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1
Antenna4 x SMA-type antenna connector
Flexible I/O1 x flexible I/O window (default: 2 x DB9 half-cut bracket)
Power1 x Phoenix-type VDC power input connector
Control1 x AT/ATX quick switch, 1 x ATX power switch, 1 x reset switch connector, 1 x remote switch
Storage
HDD Bays2 x 2.5" HDD drive bay (up to 9.5 mm height)
mSATA1 x mSATA (enabled in BIOS setting)
RAIDRAID 0 & 1 support
Expansion
PCI Express Mini Card2 x full-size PCI Express Mini Card slot (USB + PCIe signal)
SIM Slot2 x SIM slot
MXM1 x MXM3.1 type A connector
Power
Power Input24 VDC
Power ConsumptionOVP, UVP, OCP, SCP, Reverse protection
Physical
Dimensions280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight4.8 kg (10.58 lbs) net / 5.6 kg (12.34 lbs) gross
ConstructionAluminum extrusion and heavy-duty steel, IP40
ColorSilver
System Indicator1 x green LED for system power-on, 1 x green LED for HDD activity, 4 x green LED for programmable
Environmental
Operating Temperature (without MXM)-40°C to +60°C (with 35W CPU), -40°C to +50°C (with 65W CPU)
Operating Temperature (with MXM)-40°C to +50°C (with 35W CPU)
Relative Humidity10% to 90% relative humidity, non-condensing
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
VibrationIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Certifications
Supported OSWindows 10 IoT, Windows 11 IoT, Linux
