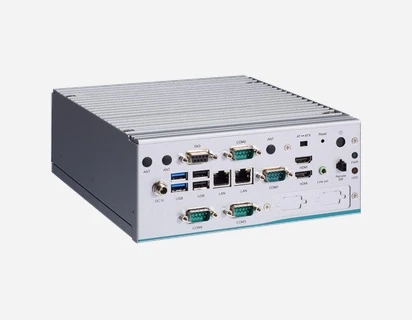

eBOX640A
Fanless Embedded System with LGA1700 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® H610, 4 COM, 2 LANs, 2 HDMI, 4 USB, 8-CH DIO and 19VDC
Features
- LGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3, 35W TDP
- Intel® UHD Graphics 770 based on Intel® Xe Architecture with support for up to 32 graphics
- Supports PCIe Mini module for flexible I/O window (optional)
- 2 HDMI for dual display outputs
- -10˚C to +50˚C wide operating temperatures
- 19VDC power input with power protection
- Efficient and budget-friendly
Computer
ProcessorLGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3 or Celeron® (up to 35W TDP)
ChipsetIntel® H610
GraphicsIntel® UHD Graphics 770 based on Intel® Xe Architecture
System Memory2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOSAMI
TPMTPM 2.0
Watchdog Timer255 levels, 1 to 255 sec.
Display
HDMI Output2 x HDMI
I/o interfaces
Serial Ports1 x RS-232/422/485 (COM1), 3 x RS-232 (COM2-4)
Ethernet1 x 2500/1000/100/10 Mbps (Intel® I225-V), 1 x 1000/100/10 Mbps (Intel® I219-V)
USB2 x USB 3.2 Gen 1, 2 x USB 2.0
Digital I/O1 x 8-CH DIO (4-in/4-out)
Audio1 x Line-out
Antenna3 x SMA-type connector
Power Switch1 x remote switch connector, 1 x power switch, 1 x reset switch connector
I/O Window1 x flexible I/O window
Quick Switch1 x ATX/AT quick switch
Storage
HDD Bay1 x 2.5" SATA (up to 15 mm height)
Expansion
M.2 Key B 2242PCIe x2 signal, storage-only
M.2 Key E 2230PCIe x1 & USB 2.0 signal
PCI Express Mini Card1 x full-size slot (PCIe x1 & USB 2.0 signal)
Power
Input19 VDC
Power ProtectionSCP (short circuit protection), OVP (over voltage protection)
Adapter19V 120W power adapter available
Physical
ConstructionAluminum extrusion and heavy-duty steel
IP RatingIP40
Standard ColorSilver
Dimensions (W x D x H)195 x 210.6 x 80 mm (7.67" x 8.27" x 3.14")
Weight (net/gross)3 kg (6.61 lb) / 3.6 kg (7.94 lb)
Environmental
Operating Temperature-10°C to +50°C (+14°F to +122°F) with W.T. SSD/DRAM
Relative Humidity10% to 90%, non-condensing
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock VibrationIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Certifications
Operating SystemsWin 10 IoT, Win 11 IoT, Linux
