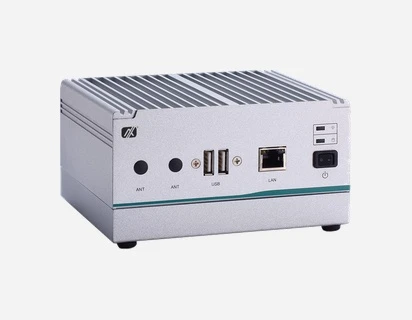

eBOX565-52R-FL
Fanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort++, 2 GbE LAN, 2 COM, 4 USB and 9-36VDC Power Input
Features
- 8th Gen Intel® Core™ processor onboard
- One M.2 Key E 2230 for Wi-Fi module
- 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
- 2 GbE LAN and 2 USB 3.1 Gen 2
- Supports DisplayPort++ and HDMI for dual independent displays
- Multiple mounting options: wall mount, DIN-rail, and VESA mount
- 9 to 36 VDC wide range input
Computer
CPUIntel® Core™ i5-8365UE, 1.6 GHz
System Memory1 x 260-pin DDR4-2400 SO-DIMM, up to 32GB
ChipsetSoC integrated
BIOSAMI UEFI BIOS
Power
Input9 to 36 VDC
Connector1 x screw type VDC power input connector, 1 x phoenix-type VDC power input connector
ProtectionOVP, OCP, SCP, Reverse protection
Watchdog Timer65535 levels, 1 to 65536 sec.
Physical
ConstructionAluminum extrusion and heavy-duty steel, IP40
Dimensions (W x D x H)141.6 x 106 x 73 mm (5.57" x 4.17" x 7.3")
Weight (net/gross)1.1 kg (2.43 lbs) / 1.8 kg (3.96 lbs)
ColorSilver
Mounting Optionswall mount, DIN-rail, VESA mount
Environmental
Operating Temperature-10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM)
Storage Temperature-20°C to +80°C (-4°F to +185°F)
Humidity10% to 90%, non-condensing
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock VibrationIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Certifications
Supported OSWin 10 IoT, Linux
