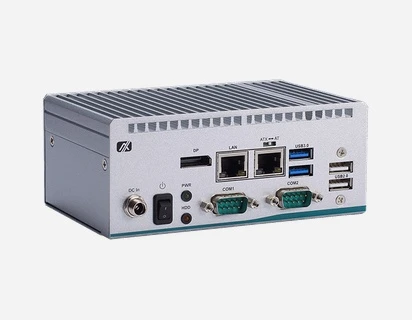

eBOX100-51R-FL
Fanless Ultra Compact Embedded System with Intel® Core™ i5-7300U & Intel® Celeron® 3965U Processors, DisplayPort++, 2 COM, 4 USB and 2 GbE LANs
Features
- Ultra compact size with high performance
- Intel® Core™ i5-7300U or Celeron® 3965U
- M.2 Key E 2230 for Wi-Fi
- M.2 Key B 2242 for storage
- Supports Azure certified and AXView
- Supports Intel® AMT 11
- Multiple mounting designs: wall mount, DIN-rail, and VESA mount
- DisplayPort++
- 2 x GbE LAN
- 2 x USB 3.0
- 2 x USB 2.0
- 2 x RS-232/422/485
- Fanless design
- IP40 construction
Computer
CPUIntel® Core™ i5-7300U 2.6 GHz or Intel® Celeron® 3965U 2.2 GHz
System Memory1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
ChipsetSoC integrated
BIOSAMI UEFI BIOS
Watchdog Timer65535 levels, 1 to 65536 sec.
System Indicator1 x Green LED for system power-on, 1 x Orange LED for HDD active
Power
Power Input12 VDC
Power ProtectionOVP (over voltage protection), OCP (over current protection), SCP (short circuit protection)
Physical
ConstructionAluminum extrusion and heavy-duty steel, IP40
Standard ColorSilver
Dimensions142 mm (5.59") x 87mm (3.42") x 58 mm (2.28")
Weight (net/gross)0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
MountingWall mount, DIN-rail, and VESA mount supported
Environmental
Operating Temperature-10°C to +50°C (+14°F to +122°F) (with W.T. SSD/DRAM)
Storage Temperature-20°C to +85°C (-4°F to +185°F)
Humidity10% - 90%, non-condensing
Vibration EnduranceIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock VibrationIEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Certifications
EOS SupportWin 10 IoT, Linux
Software SupportAXView
