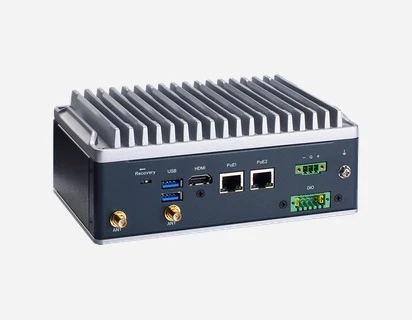

AIE510-ONX
Fanless Edge AI System with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, Isolated DIO (4-in/4-out), and 4-CH GMSL for AMR & Robotics
Features
- NVIDIA® Jetson Orin™ NX (100 TOPS)
- Seamless connectivity with 5G, Wi-Fi 6E, and 2.5 GbE combined
- Effortless management with USB and PoE device power control
- Supports dual PoE for camera and sensor connectivity
- Wide operating temperature from -25°C to +60°C
- Supports the NVIDIA Isaac™ Robot Operating System (ROS) SDK for AI-powered robot development
- Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
- NVIDIA® Jetson Orin™ NX available through to 2032
- Fanless design with IP40 rating
- 4-CH GMSL automotive camera support (GMSL variant)
- Isolated DIO (4-in/4-out)
- E-mark ignition support
- LPDDR5 memory
- 9 to 36 VDC power input
Computer
AI AcceleratorNVIDIA® Jetson Orin™ NX 16GB (100 TOPS)
CPU8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU with 2MB L2 + 4MB L3
GPU1024-core NVIDIA Ampere GPU with 32 Tensor Cores
System Memory16GB 128-bit LPDDR5 onboard
Carrier BoardPSB907
Watchdog TimerBuilt-in Orin NX
Power
Input9 to 36 VDC (typical 12/24 VDC) with ignition power control
Inrush current0.69A/3.08A
PoEIEEE 802.3at, up to 30 watts of power
Physical
ColorSilver
ConstructionAluminum extrusion and heavy-duty steel
IP RatingIP40
Dimensions AIE510-ONX-16GB180 x 124 x 71.7 mm (7.08" x 4.88" x 2.82")
Dimensions AIE510-ONX-GMSL180 x 124 x 80.7 mm (7.08" x 4.88" x 3.17")
Weight AIE510-ONX-16GB (net/gross)1.4 kg (3.15 lb) / 3.1 kg (6.83 lb)
Weight AIE510-ONX-GMSL (net/gross)1.5 kg (3.31 lb) / 3.3 kg (7.28 lb)
System Indicators1 x Green LED for system power-on, 1 x Yellow LED for M.2 SSD storage
Environmental
Operating Temperature-25°C to +60°C (-13°F to +140°F) at 25W power mode
Relative Humidity10% to 95% relative humidity, non-condensing
VibrationIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
