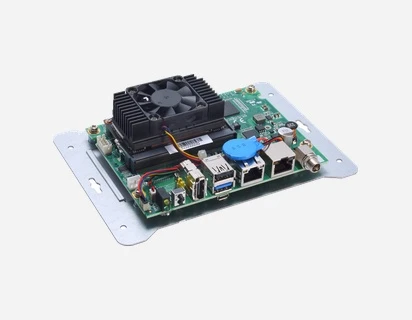

AIE110-XNX
Edge AI Developer Kit with NVIDIA® Jetson Xavier™ NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
Features
- NVIDIA® Jetson Xavier™ NX (21 TOPS)
- 1 USB 2.0, 1 USB 3.2 Gen2, and 1 GbE LAN
- Supports one 15W GbE PoE for camera
- 1 M.2 Key M NVMe SSD slot and 1 Micro SD slot
- 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
- Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
Computer
AI AcceleratorNVIDIA® Jetson Xavier™ NX (21 TOPS)
CPU6-core NVIDIA Carmel ARM® v8.2 64-bit CPU with 6 MB L2 + 4 MB L3
GPU384-core NVIDIA Volta™ GPU with 48 Tensor Cores
System Memory8GB 128-bit LPDDR4x onboard
Watchdog TimerBuilt-in Xavier NX
Storage
Onboard16GB eMMC (via Jetson Xavier™ NX)
Power
Power Input12 VDC screw type
Power SupplyOptional 12V/60W adapter (50966124050E)
Power ProtectionOVP, OCP, UVP, SCP
Physical
Dimensions (W x D x H)165 x 117 x 37.7 mm (6.49" x 4.6" x 1.48")
Weight (net/gross)0.3 kg (0.68 lb) / 1.5 kg (3.31 lb)
System Indicator1 x Green LED for system power-on, 1 x Yellow LED for M.2 storage
Environmental
Operating Temperature-10°C to +60°C (14°F to +140°F)
Relative Humidity10% to 95% relative humidity, non-condensing
VibrationIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Certifications
OS SupportLinux Ubuntu 18.04 or later
