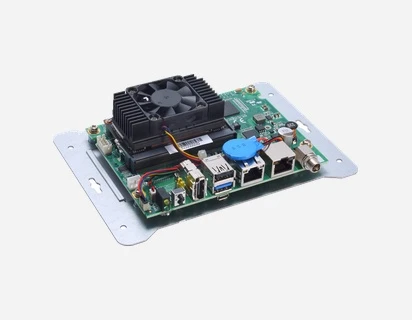

AIE110-ONX
Edge AI Developer Kit with NVIDIA® Jetson Orin™ NX, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
Features
- NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
- 1 USB 2.0, 1 USB 3.2 Gen2, and 1 GbE LAN
- Supports one 15W GbE PoE for camera
- 1 M.2 Key M NVMe SSD slot
- 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
- Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
- NVIDIA® Jetson Orin™ NX available through to 2032
Computer
AI AcceleratorNVIDIA® Jetson Orin™ NX (up to 100 TOPS)
CPU (16GB)8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
CPU (8GB)6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
GPU1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
System Memory (16GB)16GB 128-bit LPDDR5 onboard
System Memory (8GB)8GB 128-bit LPDDR5 onboard
Storage
Watchdog TimerBuilt-in Orin™ NX
Power
Power Input12 VDC screw type
System Indicator1 x Green LED for system power-on, 1 x Yellow LED for M.2 storage
Power ProtectionOVP (over voltage protection), OCP (over current protection), UVP (under voltage protection), SCP (short circuit protection)
Physical
Dimensions (W x D x H)165 x 117 x 37.7 mm (6.49" x 4.6" x 1.48")
Weight (net/gross)0.3 kg (0.68 lb)/1.5 kg (3.31 lb)
Carrier BoardSBC87903
Environmental
Operating Temperature-10°C to +60°C (14°F to +140°F)
Relative Humidity10% - 95% relative humidity, non-condensing
VibrationIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Certifications
OS SupportLinux Ubuntu 20.04 or later
