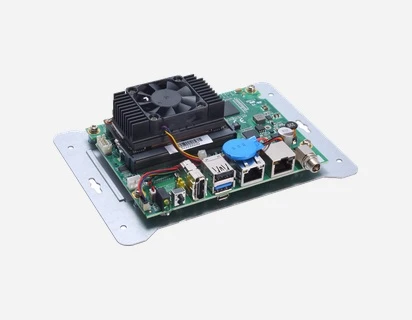

AIE110-ONA
Edge AI Developer Kit with NVIDIA Jetson Orin Nano
Features
- NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
- Supports Super Mode with Jetpack 6.2 and above
- 1 USB 2.0, 1 USB 3.2 Gen 2, and 1 GbE LAN
- Supports one 15W GbE PoE for camera
- 1 M.2 Key M NVMe SSD slot
- 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
- Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
Computer
AI AcceleratorNVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU (8GB variant)1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU (4GB variant)512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
Watchdog TimerBuilt-in Orin™ Nano
Display
HDMI 1.41 x HDMI outlet
I/o interfaces
Ethernet (Standard)1 x 10/100/1000 Mbps (via Jetson Orin™ Nano)
Ethernet (PoE)1 x 10/100/1000 Mbps (Intel® I210-IT; max. up to 15W)
USB1 x USB 3.2 Gen 2
USB1 x USB 2.0
DIO1 x DIO (pin header)
Micro USB1 x for image flash
Recovery Switch1 x
Reset Button1 x
Power Button1 x
Storage
M.2 NVMe SSD1 x M.2 Key M 2280 with PCIe x4 slot
System Memory (8GB)8GB 128-bit LPDDR5 onboard
System Memory (4GB)4GB 64-bit LPDDR5 onboard
Expansion
PCI Express Mini Card1 x full-size slot (USB + PCI Express signal)
SIM Slot1 x
Power
Input12 VDC screw type connector
Optional Adapter12V/60W
ProtectionOVP (over voltage), OCP (over current), UVP (under voltage), SCP (short circuit)
Physical
Dimensions (W x D x H)165 x 117 x 37.7 mm (6.49" x 4.6" x 1.48")
Weight (net/gross)0.3 kg (0.68 lb)/1.5 kg (3.31 lb)
Carrier BoardSBC87903
Environmental
Operating Temperature-10°C to +60°C (14°F to +140°F)
Relative Humidity10% to 95% non-condensing
VibrationIEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
ShockIEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Certifications
OS SupportLinux Ubuntu 20.04 or later
Product AvailabilityAvailable through 2032 (end of life notice at least 8 months before last shipment)
