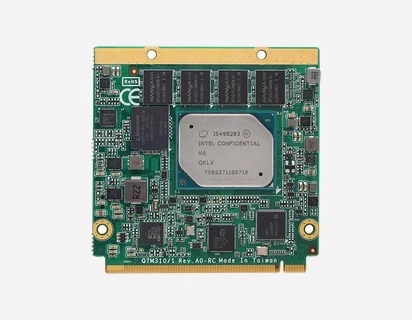

Q7M310
Qseven Module with Intel® Atom® x5 and x7 Processors
Features
- Intel Atom® x5 and x7 processors (Apollo Lake)
- 4GB DDR3L memory onboard
- 4 lanes of PCI Express slot
- 2 SATA-600
- 3 USB 3.0 and 4 USB 2.0 or 2 USB 3.0 and 6 USB 2.0 (optional)
- Watchdog Timer with 65536 levels, 0 to 65535 sec
- Hardware Monitoring
- Wake-on-LAN and PXE Boot ROM support
- HD link interface to baseboard for Codec
- 8x GPIO
- SDIO support
- Smart Battery support
- AMI uEFI BIOS
- eMMC 32GB optional
Computer
CPUIntel Atom x7-E3950 (2.0GHz), Intel Atom x5-E3940 (1.8GHz), Intel Atom x5-E3930 (1.8GHz)
System MemoryOnboard DDR3L, up to 4GB
ChipsetSoC integrated
BIOSAMI uEFI
SSDeMMC 32GB (optional)
Watchdog Timer65536 levels, 0 to 65535 sec
Storage
SATA2x SATA-600
SSDeMMC 32GB (optional)
I/o interfaces
Ethernet1x 10/100/1000Mbps with Intel i210-IT, Wake-on-LAN, PXE Boot ROM
USB2x USB 3.0 and 4x USB 2.0
Serial1x LPC interface (optional with GPIO), 1x SPI interface, 1x Serial TX/RX
AudioHD link interface to baseboard for Codec
Digital I/O8x GPIO
I2C1x I2C
SMBusYes
SDIOYes
Hardware MonitoringYes
Smart BatteryYes
Expansion
PCI Express4x PCIe x1 (3x PCIe x1 if onboard LAN is supported)
Power
Power InputATX: 5V, +5VSB; AT: 5V
BatteryN/A
Physical
Size70x70mm
Board Thickness1.2mm
Environmental
Operating Temperature-40°C to +85°C
Operating Humidity10%-95% relative humidity, non-condensing
Certifications
TPMN/A
Computer
CPUIntel Atom x7-E3950 (2.0GHz), Intel Atom x5-E3940 (1.8GHz), Intel Atom x5-E3930 (1.8GHz)
System MemoryOnboard DDR3L, up to 4GB
ChipsetSoC integrated
BIOSAMI uEFI
SSDeMMC 32GB (optional)
Watchdog Timer65536 levels, 0 to 65535 sec
Storage
SATA2x SATA-600
SSDeMMC 32GB (optional)
I/o interfaces
Ethernet1x 10/100/1000Mbps with Intel i210-IT, Wake-on-LAN, PXE Boot ROM
USB2x USB 3.0 and 4x USB 2.0
Serial1x LPC interface (optional with GPIO), 1x SPI interface, 1x Serial TX/RX
AudioHD link interface to baseboard for Codec
Digital I/O8x GPIO
I2C1x I2C
SMBusYes
SDIOYes
Hardware MonitoringYes
Smart BatteryYes
Expansion
PCI Express4x PCIe x1 (3x PCIe x1 if onboard LAN is supported)
Power
Power InputATX: 5V, +5VSB; AT: 5V
BatteryN/A
Physical
Size70x70mm
Board Thickness1.2mm
Environmental
Operating Temperature-40°C to +85°C
Operating Humidity10%-95% relative humidity, non-condensing
Certifications
TPMN/A
