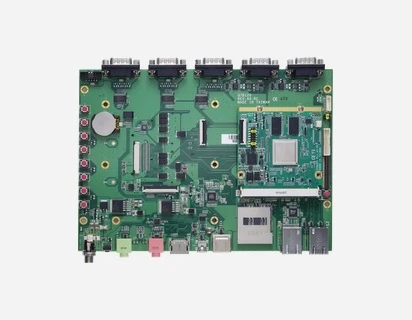

Q7M120-120-EVK
Qseven v2.0 SoM Evaluation Kit with Quad/DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio and CAN
Features
- Ultra low power consumption Cortex™-A9
- High flexibility Qseven v2.0 compliant design
- 2 CAN 2.0B
- 18/24-bit TTL LCD
- LVDS/HDMI 1080P
- 10/100/1000 Mbps Ethernet
- Linux3.0.35/Android4.3
- Audio
I/o interfaces
Ethernet1 x RJ-45 for 10/100 Mbps, 1 x RJ-45 for 10/100/1000 Mbps
AudioMic-in/Headphone
COM4 x COM with TX/RX/RTS/CTS (one with 3.3V TTL level), 1 x Console port
USB1 x USB 2.0, 1 x OTG client
I²C3 x I²C Interface
CAN2
Keypad8
Touch4-wire touch screen controller
Environmental
Operating Temperature-40℃ to 70℃ (standard), -40℃ to 75℃ (with heatsink)
I/o interfaces
Ethernet1 x RJ-45 for 10/100 Mbps, 1 x RJ-45 for 10/100/1000 Mbps
AudioMic-in/Headphone
COM4 x COM with TX/RX/RTS/CTS (one with 3.3V TTL level), 1 x Console port
USB1 x USB 2.0, 1 x OTG client
I²C3 x I²C Interface
CAN2
Keypad8
Touch4-wire touch screen controller
Environmental
Operating Temperature-40℃ to 70℃ (standard), -40℃ to 75℃ (with heatsink)
